Voltage-to-Frequency Converter IC with 500kHz bandwidth and 0.2% linearity. Features a 0.4% accuracy and operates with a dual supply voltage range of 5V to 18V, supporting a maximum supply voltage of 36V. This surface mount component is housed in an 8-pin SOIC package with tin, matte contact plating. Ideal for applications requiring precise frequency conversion up to 500kHz.
Frequency500kHz
PackageSOIC
Current2.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD654JRZ technical specifications.
General
Accuracy
0.4%
Bandwidth
500kHz
Package/Case
SOIC
Contact Plating
Tin, Matte
Dual Supply Voltage
9V
Frequency
500kHz
Height
1.5mm
Lead Free
Contains Lead
Length
5mm
Linearity
0.2%
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
5V
Max Frequency
500kHz
Max Input Voltage
14V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Output Voltage
18V
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Current
2.5mA
Operating Supply Voltage
28V
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2.5mA
Supply Type
Dual
Weight
0.019048oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD654JRZ Datasheet
Download the complete datasheet for Analog Devices AD654JRZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

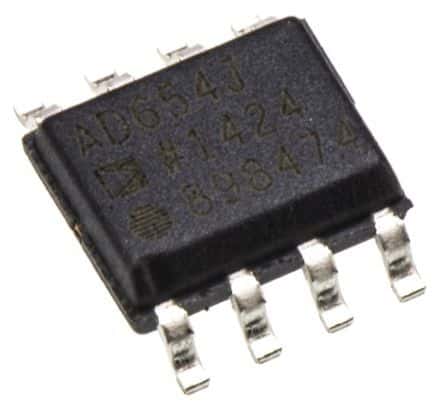

Product Images
