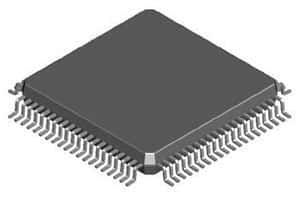

65MSPS Digital Receive Signal Processor, an 11-bit integrated circuit for surface mount applications. Features a PQFP package with tin, matte contact plating, measuring 14mm in length and width, and 2.7mm in height. Operates with serial and parallel interfaces across a supply voltage range of 3V to 3.6V, with a nominal supply current of 52mA. Maximum power dissipation is 750mW, and it operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD6620ASZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD6620ASZ technical specifications.
| Package/Case | PQFP |
| Contact Plating | Tin, Matte |
| Height | 2.7mm |
| Interface | Serial, Parallel |
| Lead Free | Contains Lead |
| Length | 14mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 750mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount, PCB |
| Nominal Supply Current | 52mA |
| Number of Bits | 11 |
| Operating Supply Current | 52mA |
| Operating Supply Voltage | 3.3V |
| Output Range | 0.2 0.4 V |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 14mm |
| RoHS | Compliant |
