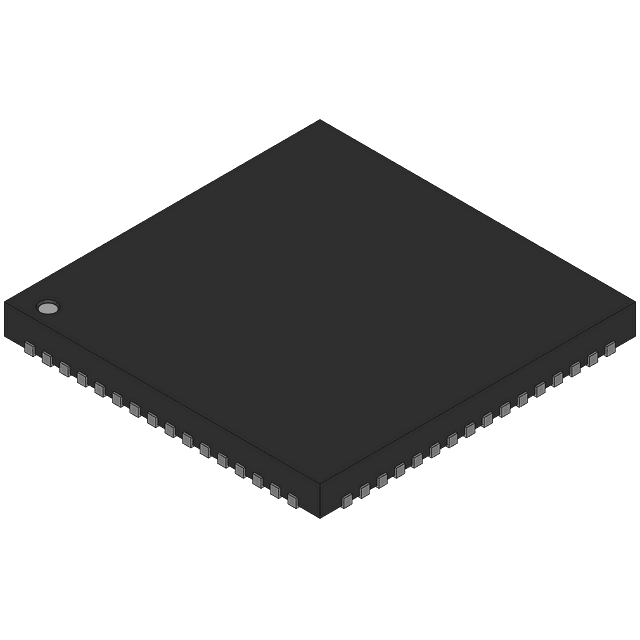

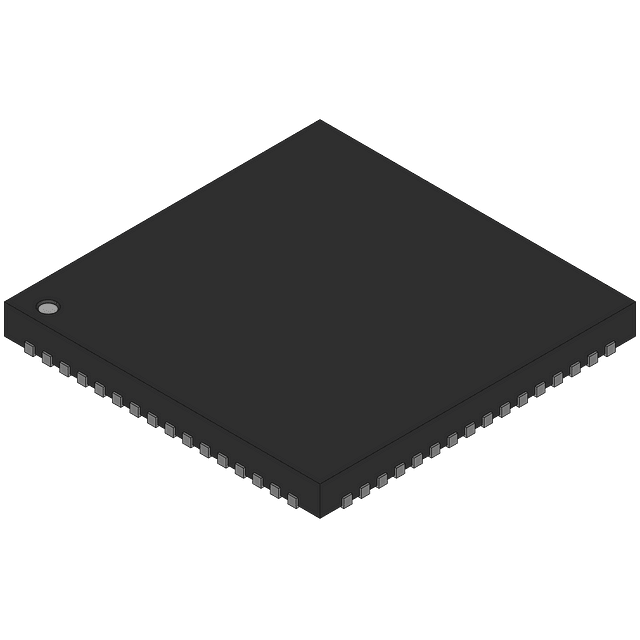

Dual IF Receiver, an 11-bit, 2-channel analog-to-digital converter IC, operates with a 250 MSPS sampling rate. Featuring LVDS interface and a 2.5pF input capacitance, this receiver offers 0.25 LSB integral nonlinearity. It functions within a 1.7V to 1.9V supply voltage range and a -40°C to 85°C temperature range. The component is RoHS compliant and packaged in a tray.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD6643BCPZ-200 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD6643BCPZ-200 technical specifications.
| Contact Plating | Tin, Matte |
| Height | 0.95mm |
| Input Capacitance | 2.5pF |
| Integral Nonlinearity (INL) | 0.25LSB |
| Interface | LVDS |
| Lead Free | Contains Lead |
| Length | 9.1mm |
| Logic Function | Receiver |
| Max Input Voltage | 1.75V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Number of A/D Converters | 2 |
| Number of Bits | 11 |
| Number of Channels | 2 |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resolution | 11b |
| RoHS Compliant | Yes |
| Sampling Rate | 250000000S/s |
| Supply Current | 238mA |
| Width | 9.1mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD6643BCPZ-200 to view detailed technical specifications.
