Analog Devices
AD6644ASTZ-65
14-Bit 65MSPS ADC, 100dB DR, 250MHz, Differential Input, Parallel Interface
14-bit Analog-to-Digital Converter (ADC) with a 65 MSPS conversion rate. Features a 100dB dynamic range and a 74.5dB signal-to-noise ratio. Operates with a 5V supply voltage and offers a parallel interface. Differential input type with a maximum input voltage of 2.2V. Packaged in LQFP with SMD/SMT termination.
Frequency250MHz
PackageLQFP
Current245mA
PolarityUnipolar
Quick Jump:
Technical Specifications
Analog Devices AD6644ASTZ-65 technical specifications.
General
Package/Case
LQFP
Conversion Rate
65MS/s
Dynamic Range
100dB
Frequency
250MHz
Height
1.4mm
Input Capacitance
1.5pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
0.5LSB
Interface
Parallel
Lead Free
Contains Lead
Length
10mm
Max Input Voltage
2.2V
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.85V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
14
Number of Channels
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tray
Polarity
Unipolar
Power Dissipation
1.5W
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
65000000S/s
Signal to Noise Ratio (SNR)
74.5dB
Supply Current
245mA
Termination
SMD/SMT
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD6644ASTZ-65 Datasheet
Download the complete datasheet for Analog Devices AD6644ASTZ-65 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

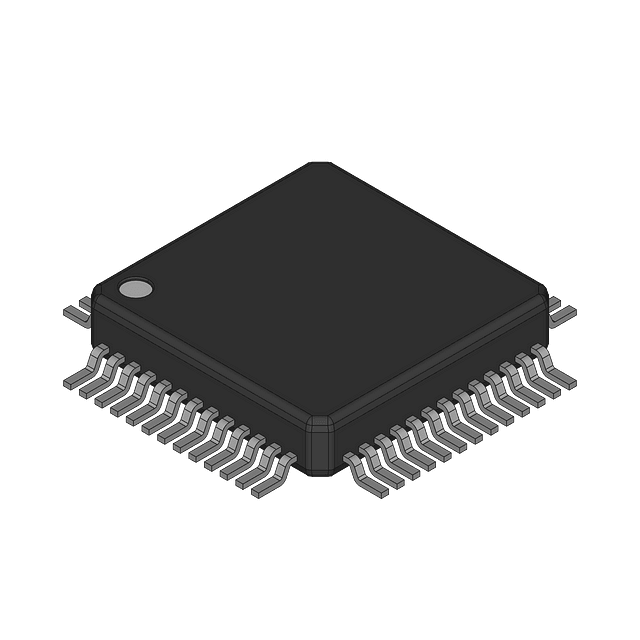

Product Images
