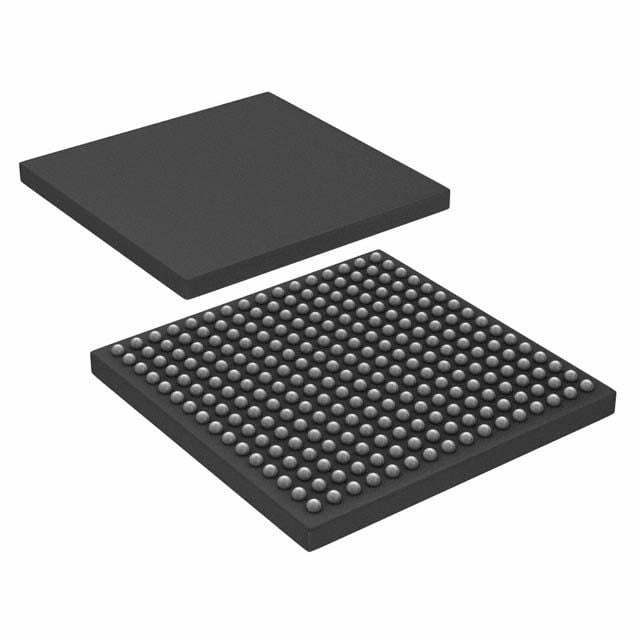

14-bit, 92.16 MSPS, 4 & 6-channel wideband IF to baseband receiver IC. Features a 92.16 MS/s conversion rate and 92.16 Mbps data rate. Operates with a 5V supply voltage and offers SPI and Parallel interfaces. Packaged in a BGA with copper, tin, and silver contact plating. Supports a temperature range of -25°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD6654BBCZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD6654BBCZ technical specifications.
| Package/Case | BGA |
| Contact Plating | Copper, Tin, Silver |
| Conversion Rate | 92.16MS/s |
| Data Rate | 92.16Mbps |
| Height | 1.31mm |
| Input Capacitance | 1.5pF |
| Input Type | DIFFERENTIAL |
| Interface | SPI, Parallel |
| Lead Free | Contains Lead |
| Length | 17.2mm |
| Max Input Voltage | 2.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 2.5W |
| Number of A/D Converters | 1 |
| Number of Bits | 14 |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 90 |
| Packaging | Tray |
| Power Dissipation | 2.5W |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 92.16MS/s |
| Termination | SMD/SMT |
| Width | 17.2mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD6654BBCZ to view detailed technical specifications.
