Microprocessor-compatible 12-bit digital-to-analog converter (DAC) with a 500 kS/s conversion rate. Features a bipolar/unipolar voltage output, 0.75 LSB integral nonlinearity, and a 2 µs settling time. Operates with dual supply voltages between 11.4V and 16.5V, and input voltages from 8V to 11V. Housed in an LCC package with gold contact plating, this single-channel DAC offers a wide operating temperature range of -55°C to 125°C.
PackageLCC
Power555mW
Quick Jump:
Technical Specifications
Analog Devices AD667SE technical specifications.
General
| Package/Case | LCC |
| Contact Plating | Gold |
| Conversion Rate | 500KS/s |
| Differential Output | No |
| Integral Nonlinearity (INL) | 0.75LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 16.5V |
| Min Dual Supply Voltage | 11.4V |
| Max Input Voltage | 11V |
| Min Input Voltage | 8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 20V |
| Min Output Voltage | 5V |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Output Polarity | Bipolar, Unipolar |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Power Dissipation | 555mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 500KS/s |
| Settling Time | 2us |
| Slew Rate | 10V/µs |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD667SE Datasheet
Download the complete datasheet for Analog Devices AD667SE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

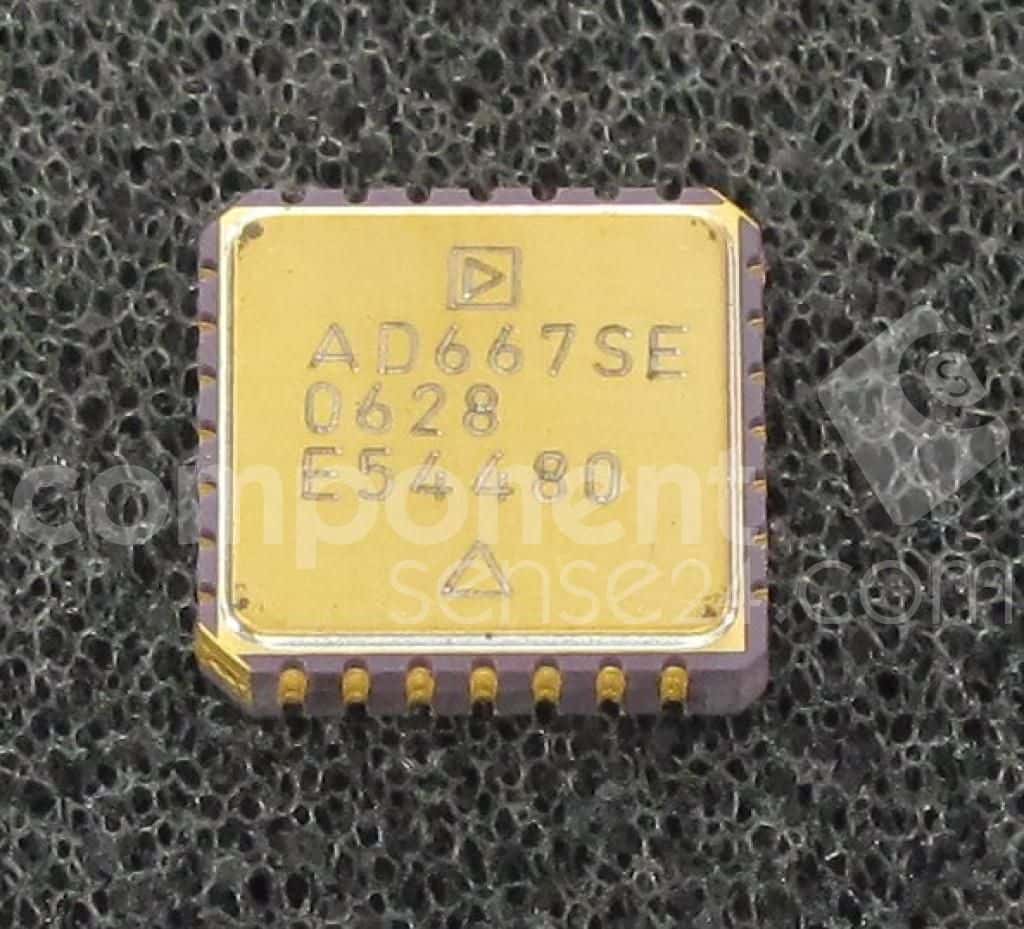

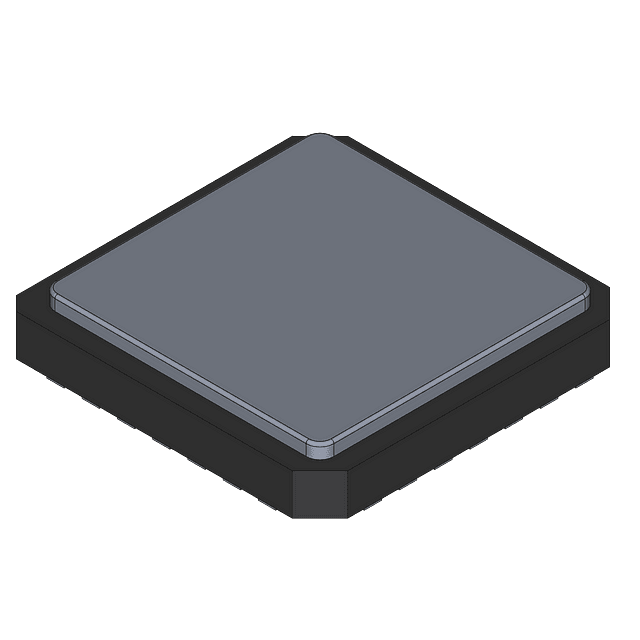

Product Images
