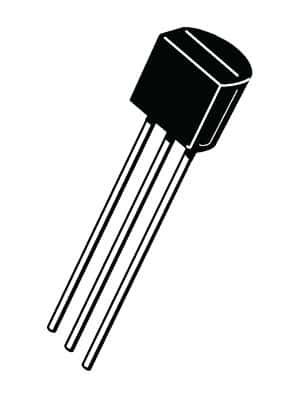

2.5V Series Voltage Reference IC, featuring a low operating supply current of 250µA and a maximum output current of 10mA. This bandgap reference offers a precise 2.5V output with a tolerance of 0.4%, operating from a maximum input voltage of 36V. Packaged in a TO-92 through-hole mount, it functions across an industrial temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD680JTZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-92 |
| Current Rating | 250uA |
| Height | 5.33mm |
| Lead Free | Contains Lead |
| Length | 5.21mm |
| Max Input Voltage | 36V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10mA |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 2.49V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Operating Supply Current | 250uA |
| Output Current | 10mA |
| Output Voltage | 2.5V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Quiescent Current | 250uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Series |
| Reference Voltage | 2.5V |
| RoHS Compliant | Yes |
| Supply Current | 250uA |
| Tolerance | 0.4% |
| Width | 4.19mm |
| RoHS | Compliant |
