Quad bipolar operational amplifier featuring picoampere input current. Offers a 100dB Common Mode Rejection Ratio and 132dB Power Supply Rejection Ratio. Input bias current is 100pA with an input offset voltage of 150uV. Operates with dual supply voltages from 2V to 15V, with a maximum of 18V. Packaged in LCC with gold contact plating, this component supports a wide operating temperature range from -55°C to 125°C.
PackageLCC
Quick Jump:
Technical Specifications
Analog Devices AD704SE/883B technical specifications.
General
Package/Case
LCC
Common Mode Rejection Ratio
100dB
Contact Plating
Gold
Dual Supply Voltage
15V
Input Bias Current
100pA
Input Capacitance
2pF
Input Offset Voltage (Vos)
150uV
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Nominal Supply Current
2.4mA
Number of Amplifiers
4
Number of Channels
4
Number of Elements
4
Operating Supply Current
2.4mA
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
132dB
Quiescent Current
600uA
RoHS Compliant
No
Series
AD704
Technology
BIPOLAR
Voltage Gain
126.02dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD704SE/883B Datasheet
Download the complete datasheet for Analog Devices AD704SE/883B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

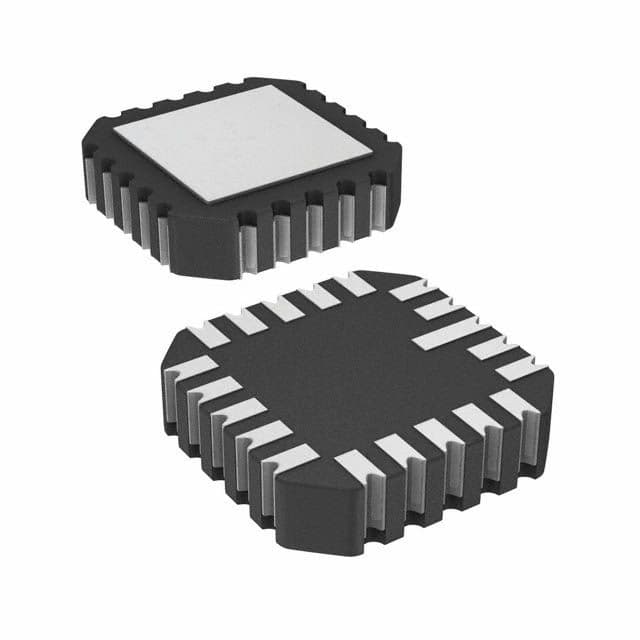

Product Images
