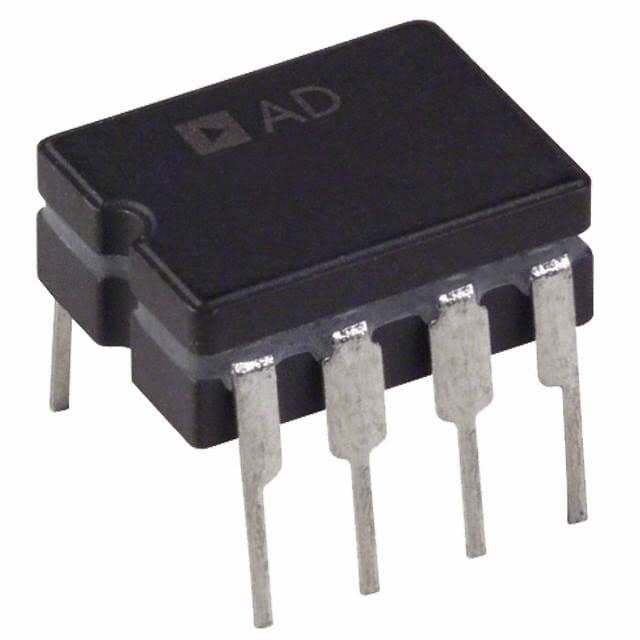

Dual operational amplifier featuring ultralow offset voltage of 30µV and high CMRR/PSRR of 130dB. This general-purpose op amp offers a 900kHz bandwidth and 0.3V/µs slew rate, suitable for dual supply operation from ±3V to ±18V, with a maximum supply voltage of ±36V. It operates across a wide temperature range of -55°C to 125°C and provides 12.5mA output current per channel. The component utilizes bipolar technology and is housed in a Q package with tin-lead contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD708BQ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD708BQ technical specifications.
| -3db Bandwidth | 900kHz |
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 900kHz |
| Package/Case | Q |
| Common Mode Rejection Ratio | 130dB |
| Contact Plating | Tin, Lead |
| Dual Supply Voltage | 15V |
| Gain Bandwidth Product | 900kHz |
| Height | 3.56mm |
| Input Bias Current | 500pA |
| Input Offset Voltage (Vos) | 30uV |
| Lead Free | Contains Lead |
| Length | 10.29mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Current | 5.5mA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 6V |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 5.5mA |
| Output Current | 12.5mA |
| Output Current per Channel | 12.5mA |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 130dB |
| Quiescent Current | 2.75mA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Slew Rate | 0.3V/µs |
| Supply Current | 5.5mA |
| Technology | BIPOLAR |
| Voltage Gain | 140dB |
| Width | 7.87mm |
| RoHS | Not CompliantNo |
