Ultra-low noise 24-bit sigma-delta Analog-to-Digital Converter (ADC) featuring a 4.8 kS/s sampling rate and integrated Programmable Gain Amplifier (PGA). This bipolar ADC offers 4 analog input channels and a 24-bit resolution. Operates from a 3V to 5.25V supply, with a typical 5V operating voltage, and supports SPI interface. Encased in a 7.8mm x 4.4mm x 1.05mm TSSOP package with tin-matte contact plating.
PackageTSSOP
PolarityBipolar
Power27.5mW
Quick Jump:
Technical Specifications
Analog Devices AD7192BRUZ technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Matte
Height
1.05mm
Interface
SPI
Lead Free
Contains Lead
Length
7.8mm
Max Input Voltage
5V
Min Input Voltage
1V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
27.5mW
Max Supply Voltage
5.25V
Min Supply Voltage
3V
Number of A/D Converters
1
Number of Bits
24
Number of Channels
4
Number of Converters
1
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
62
Packaging
Rail/Tube
Polarity
Bipolar
Power Dissipation
27.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
4.8KS/s
Supply Type
Analog, Digital
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7192BRUZ Datasheet
Download the complete datasheet for Analog Devices AD7192BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

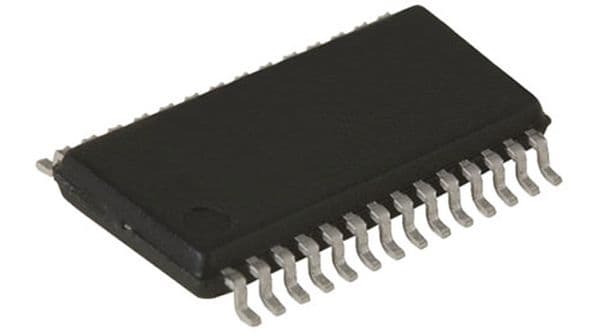

Product Images
