Analog Devices
AD7224LR-18REEL
IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PDSO18, SOIC-18, Digital to Analog Converter
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD7224LR-18REEL technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Tin, Lead |
| Conversion Rate | 143KS/s |
| Differential Output | No |
| Full Scale Error | 1LSB |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 15.75V |
| Min Supply Voltage | 14.25V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Operating Supply Voltage | 15V |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Packaging | Tape and Reel |
| Resolution | 8b |
| RoHS Compliant | No |
| Settling Time | 20us |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices AD7224LR-18REEL Datasheet
Download the complete datasheet for Analog Devices AD7224LR-18REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

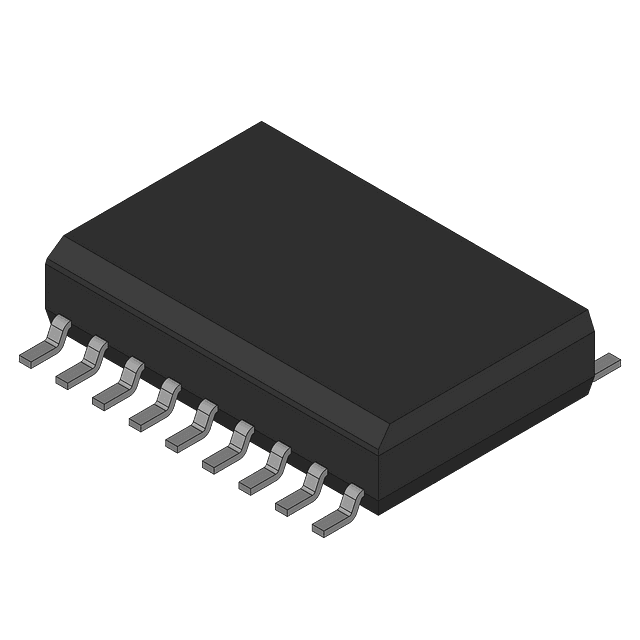

Product Images
