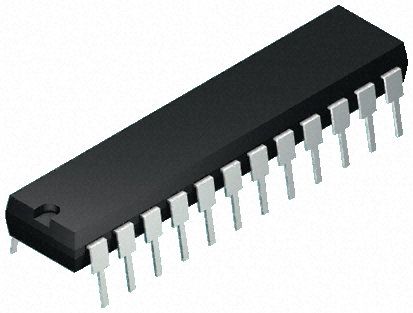

12-bit, single-channel digital-to-analog converter (DAC) with a 143 kS/s conversion rate. Features a parallel interface, bipolar/unipolar output polarity, and a voltage output type. Operates with a dual supply voltage of ±15V, with a maximum of ±16.5V and minimum of ±10.8V. Housed in a PDIP package with tin, matte contact plating. Offers 1 LSB integral nonlinearity and a 7 µs settling time.
PackagePDIP
Power210mW
Quick Jump:
Technical Specifications
Analog Devices AD7245AANZ technical specifications.
General
Package/Case
PDIP
Contact Plating
Tin, Matte
Conversion Rate
143KS/s
Converter Type
GENERAL PURPOSE
Differential Output
No
Dual Supply Voltage
15V
Height
3.3mm
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Contains Lead
Length
31.75mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
10.8V
Max Input Voltage
5V
Min Input Voltage
5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Voltage
10V
Min Output Voltage
5V
Max Power Dissipation
450mW
Max Supply Voltage
16.5V
Min Supply Voltage
10.8V
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Operating Supply Voltage
15V
Output Polarity
Bipolar, Unipolar
Output Type
Voltage
Package Quantity
15
Packaging
Rail/Tube
Power Dissipation
210mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
143KS/s
Series
DACPORT®
Settling Time
7us
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7245AANZ Datasheet
Download the complete datasheet for Analog Devices AD7245AANZ to view detailed technical specifications.
