1 MSPS, 12-bit, dual-channel SAR ADC featuring simultaneous sampling. Offers a programmable gain amplifier (PGA) and four comparators. Achieves 1 LSB Integral Nonlinearity (INL) and 0.99 LSB Differential Nonlinearity (DNL). Operates from a single 5V supply with a maximum power dissipation of 175mW. Features an SPI interface and a signal-to-noise ratio (SNR) of 73dB.
Power120mW
Quick Jump:
Technical Specifications
Analog Devices AD7262BCPZ technical specifications.
General
Contact Plating
Tin, Matte
Differential Nonlinearity
0.99LSB
Input Capacitance
5pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Contains Lead
Max Input Voltage
2.5V
Min Input Voltage
2.5V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
175mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
23mA
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
24
Number of Channels
2
Number of Inputs
2
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tray
Power Dissipation
120mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
1000000S/s
Signal to Noise Ratio (SNR)
73dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7262BCPZ Datasheet
Download the complete datasheet for Analog Devices AD7262BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

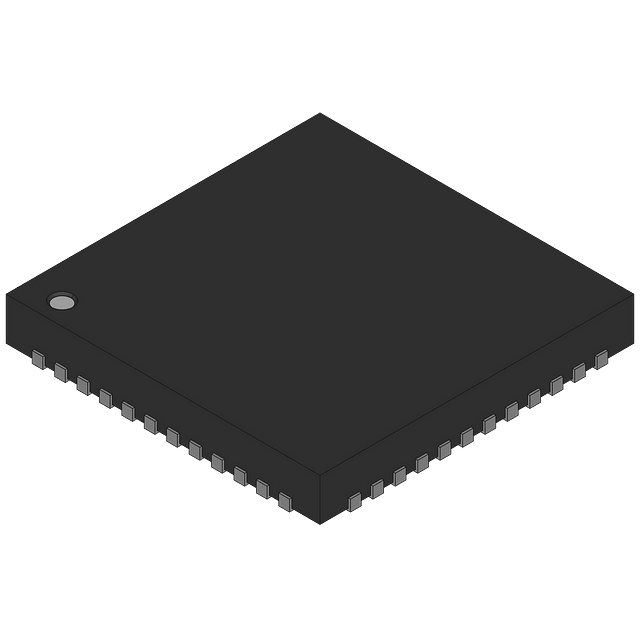

Product Images
