12-bit, 1 MSPS SAR ADC with simultaneous sampling, featuring a 2-channel differential input and a programmable gain amplifier (PGA). Offers 1LSB integral nonlinearity and 0.99LSB differential nonlinearity. Operates from a single 5V supply with a maximum power dissipation of 175mW. Includes four comparators and an SPI interface. Packaged in LFCSP EP on tape and reel.
PackageLFCSP EP
Power120mW
Quick Jump:
Technical Specifications
Analog Devices AD7262BCPZ-5-RL7 technical specifications.
General
Package/Case
LFCSP EP
Differential Nonlinearity
0.99LSB
Input Capacitance
5pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Contains Lead
Max Input Voltage
2.5V
Min Input Voltage
2.5V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
120mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
24
Number of Channels
2
Number of Converters
2
Number of Elements
2
Number of Inputs
2
Operating Supply Voltage
5V
Output Type
TTL
Package Quantity
750
Packaging
Tape and Reel
Power Consumption
120mW
Power Dissipation
175mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
500000S/s
Signal to Noise Ratio (SNR)
73dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7262BCPZ-5-RL7 Datasheet
Download the complete datasheet for Analog Devices AD7262BCPZ-5-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

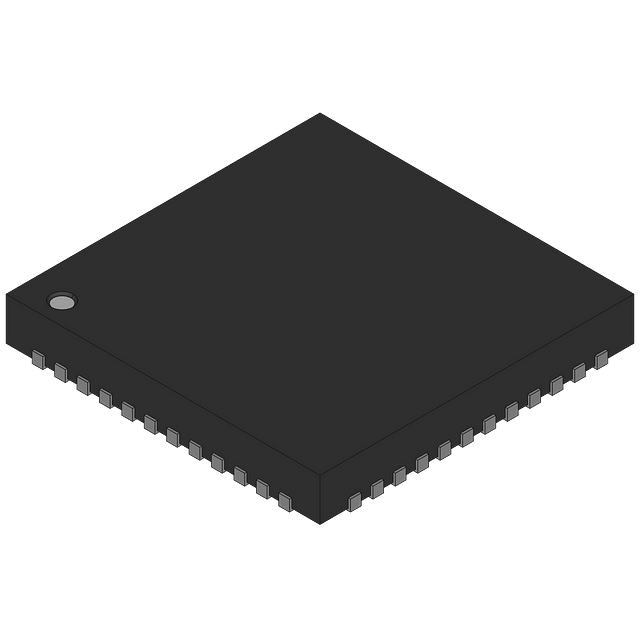

Product Images
