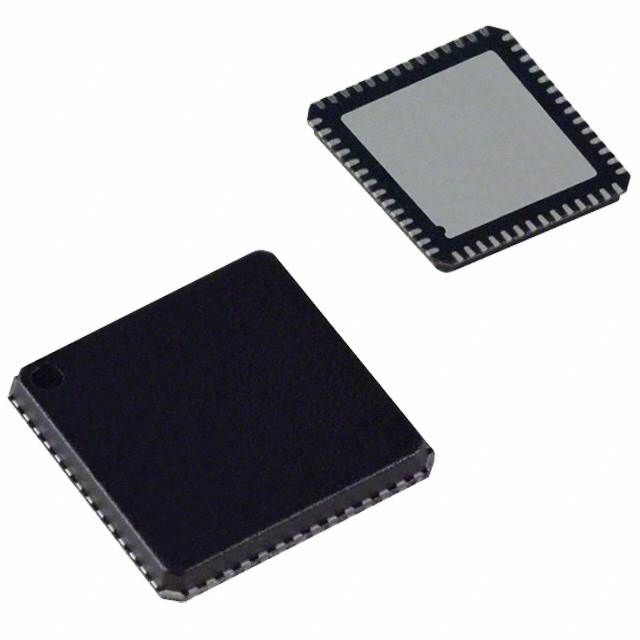

12-Bit Monitor and Control System IC featuring a multichannel analog-to-digital converter (ADC) and digital-to-analog converters (DACs), integrated temperature sensor, and current sense capability. Offers a 200 kS/s conversion rate with 12-bit resolution and a 73dB signal-to-noise ratio (SNR). Operates with analog and digital supply types, supporting a voltage range of 5V to 59.4V. Interface via I2C or 2-wire protocols, with single-ended input type and a maximum input voltage of 2.5V. Housed in an 8mm x 8mm x 0.95mm LFCSP EP package with tin, matte contact plating, and a temperature range of -40°C to 105°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7294BCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD7294BCPZ technical specifications.
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 200KS/s |
| Height | 0.95mm |
| Input Type | SINGLE-ENDED |
| Interface | I2C, 2-Wire |
| Lead Free | Contains Lead |
| Length | 8mm |
| Max Input Voltage | 2.5V |
| Min Input Voltage | 100mV |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 105mW |
| Max Supply Voltage | 59.4V |
| Min Supply Voltage | 5V |
| Number of Channels | 9 |
| Operating Supply Voltage | 5.5V |
| Output Type | Digital |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 200KS/s |
| Signal to Noise Ratio (SNR) | 73dB |
| Supply Type | Analog, Digital |
| Width | 8mm |
| RoHS | Compliant |
