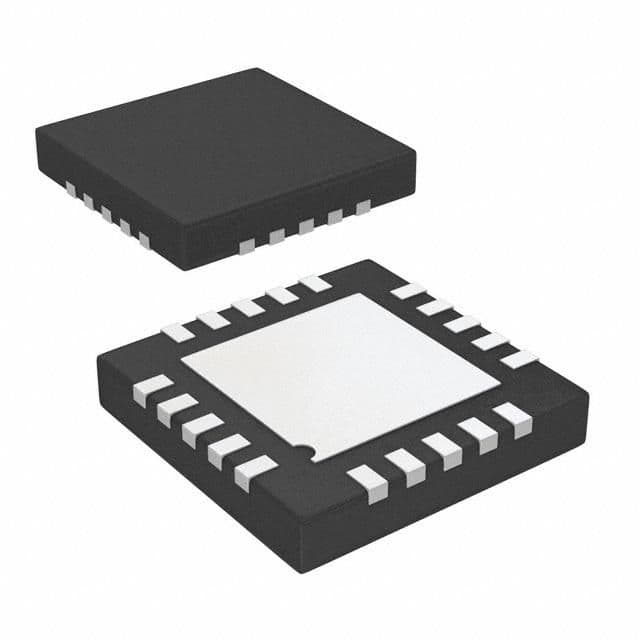

10-Bit, 8-Channel SAR Analog-to-Digital Converter (ADC) with a 1 MSPS sampling rate. Features include 0.5 LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL), 1 LSB Full Scale Error, and 61.5 dB Signal-to-Noise Ratio (SNR). Operates from a single 2.8V to 3.6V supply, with a maximum input voltage of 2.5V. Interface is SPI, and it is housed in a 4.1mm x 4.1mm x 0.75mm LFCSP EP package with tin, matte contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7298-1BCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD7298-1BCPZ technical specifications.
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Differential Nonlinearity | 0.5LSB |
| Full Scale Error | 1LSB |
| Height | 0.75mm |
| Input Capacitance | 32pF |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | SPI |
| Lead Free | Contains Lead |
| Length | 4.1mm |
| Max Input Voltage | 2.5V |
| Min Input Voltage | 1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 23mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.8V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 8 |
| Number of Bits | 10 |
| Number of Channels | 8 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 8 |
| Operating Supply Voltage | 3V |
| Package Quantity | 1 |
| Packaging | Tray |
| Polarity | Unipolar |
| Power Dissipation | 23mW |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 1MS/s |
| Signal to Noise Ratio (SNR) | 61.5dB |
| Supply Type | Single |
| Width | 4.1mm |
| RoHS | Compliant |
