10-bit digital temperature sensor with SPI, 3-wire, and 4-wire serial interface. Features a 2.65V to 5.5V supply voltage range, 300µA operating supply current, and 450mW power dissipation. Operates from -35°C to 85°C with a 2.5 kS/s sampling rate. Housed in an 8-pin MSOP package with tin, matte contact plating.
PackageMSOP
Current300uA
Power450mW
Quick Jump:
Technical Specifications
Analog Devices AD7314ARMZ technical specifications.
General
Package/Case
MSOP
Contact Plating
Tin, Matte
Height
0.85mm
Interface
SPI, Serial, 3-WIRE, 4-WIRE
Lead Free
Contains Lead
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Power Dissipation
450mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.65V
Number of Bits
10
Number of Channels
1
Operating Supply Current
300uA
Output Type
Digital
Output Voltage
2.4V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
450mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
2.5KS/s
Supply Current
300uA
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7314ARMZ Datasheet
Download the complete datasheet for Analog Devices AD7314ARMZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

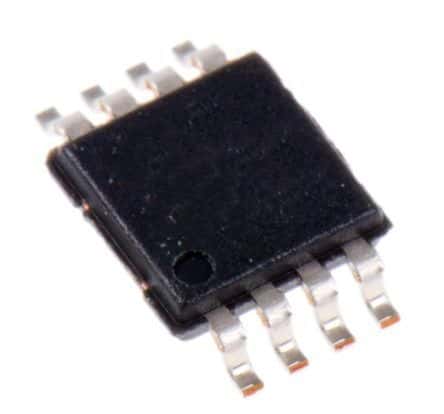

Product Images
