The AD73360LARZ-REEL7 is a 16-bit 6-channel analog-to-digital converter with a conversion rate of 64KS/s. It operates from a supply voltage of 2.7V to 3.6V and has a maximum power dissipation of 80mW. The device is packaged in a SOIC W package and is suitable for surface mount applications. It is compliant with RoHS regulations and has an operating temperature range of -40°C to 85°C.
PackageSOIC W
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD73360LARZ-REEL7 technical specifications.
General
| Package/Case | SOIC W |
| Contact Plating | Tin, Matte |
| Conversion Rate | 64KS/s |
| Interface | Serial, 6-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 80mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 6 |
| Number of Bits | 16 |
| Number of Channels | 6 |
| Number of Converters | 6 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 64KS/s |
| Type | General Purpose |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD73360LARZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD73360LARZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

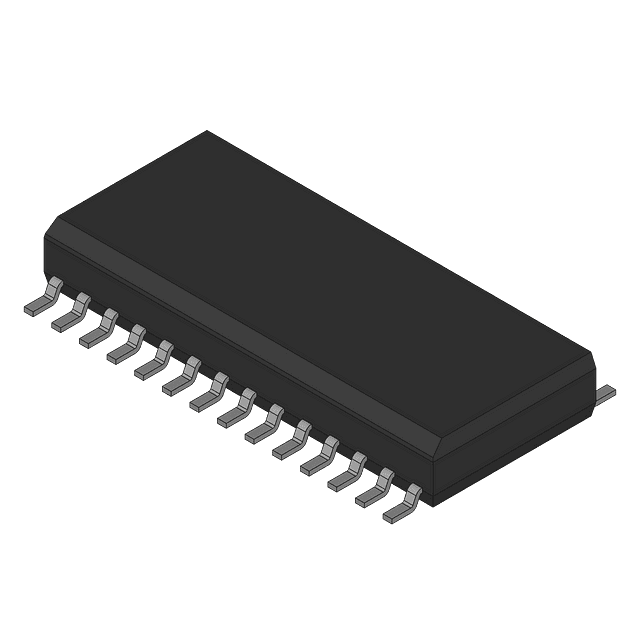

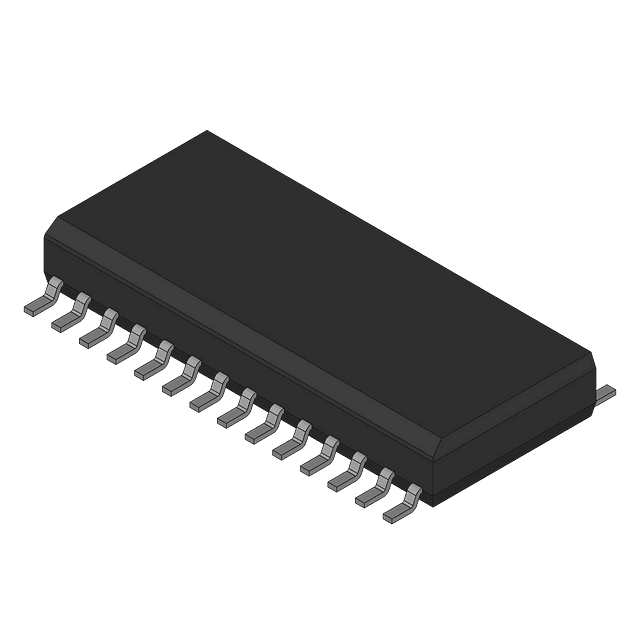

Product Images
