4-bit analog multiplier/divider IC, featuring a 14-pin CDIP package with Tin/Lead contact plating. Operates with a dual supply voltage range of ±8V to ±16.5V, supporting a maximum frequency of 10MHz. Offers a slew rate of 450V/µs and a settling time of 200ns. Designed for through-hole mounting, this component has a maximum power dissipation of 500mW and an operating supply current of 12mA.
Frequency10MHz
PackageCDIP
Current9mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD734AQ technical specifications.
General
Package/Case
CDIP
Contact Plating
Tin, Lead
Dual Supply Voltage
15V
Height
3.56mm
Lead Free
Contains Lead
Length
19.94mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
8V
Max Frequency
10MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
16.5V
Min Supply Voltage
8V
Mount
Through Hole
Number of Amplifiers
4
Number of Bits
4
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
12mA
Output Current
10mA
Output Voltage
12V
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Settling Time
200ns
Slew Rate
450V/µs
Supply Current
9mA
Termination
Through Hole
Width
7.87mm
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD734AQ Datasheet
Download the complete datasheet for Analog Devices AD734AQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

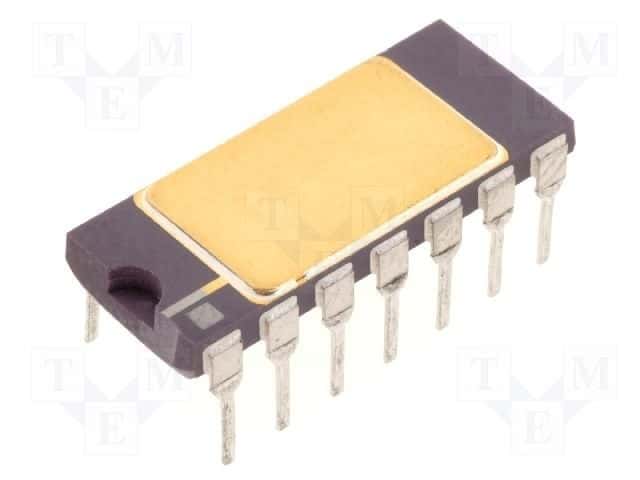

Product Images
