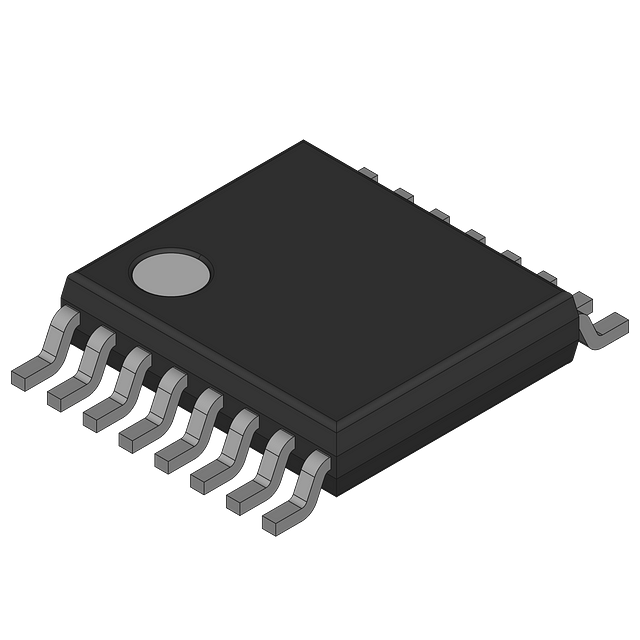

14-bit, dual-channel SAR Analog-to-Digital Converter (ADC) featuring simultaneous sampling and a 4.25 MSPS conversion rate. Offers differential inputs with a voltage range of 2.048V to 2.5V and an input capacitance of 32pF. Operates from a single 2.5V supply with a typical power dissipation of 36mW. Includes an SPI interface and a signal-to-noise ratio (SNR) of 76.5dB. Packaged in TSSOP for tape and reel distribution, with an operating temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7357WYRUZ-RL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD7357WYRUZ-RL technical specifications.
| Package/Case | TSSOP |
| Conversion Rate | 4.25MS/s |
| Input Capacitance | 32pF |
| Input Type | DIFFERENTIAL |
| Interface | SPI |
| Lead Free | Contains Lead |
| Max Input Voltage | 2.5V |
| Min Input Voltage | 2.048V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 59mW |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 14 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of Inputs | 2 |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 36mW |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 4.25MS/s |
| Signal to Noise Ratio (SNR) | 76.5dB |
| Supply Type | Single |
| RoHS | Compliant |
