True RMS to DC converter IC with a 33V maximum operating supply voltage and 200µA input/supply current. Features a 170kHz -3dB bandwidth and 33kHz bandwidth, with a 1V maximum input voltage. This surface mount component is housed in an 8-pin SOIC package with tin, matte contact plating, measuring 5mm in length, 4mm in width, and 1.5mm in height. It operates within a temperature range of -40°C to 85°C and offers a 2mA maximum output current.
PackageSOIC
Current200uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD736ARZ technical specifications.
General
| -3db Bandwidth | 170kHz |
| Bandwidth | 33kHz |
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Height | 1.5mm |
| Input Current | 200uA |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Input Voltage | 1V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2mA |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Operating Supply Current | 200uA |
| Operating Supply Voltage | 33V |
| Output Current | 2mA |
| Package Quantity | 98 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 200uA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD736ARZ Datasheet
Download the complete datasheet for Analog Devices AD736ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

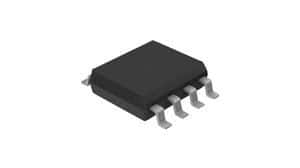

Product Images
