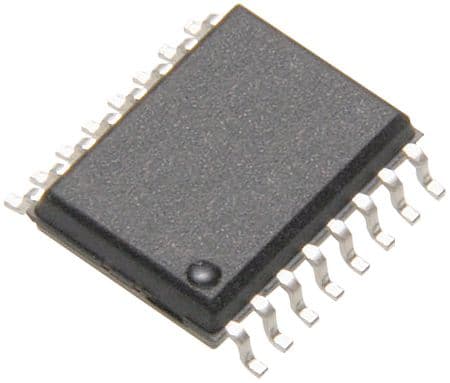

16-bit isolated sigma-delta modulator with a 20MS/s sampling rate and 83dB SNR. Features a 20Mbps serial interface, differential input, and a 640mV max input voltage. Operates from a 3V to 5.5V supply, with a typical power consumption of 93.5mW. Housed in a 16-lead SOIC package with tin, matte contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7401AYRWZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD7401AYRWZ technical specifications.
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Data Rate | 20Mbps |
| Differential Nonlinearity | 0.9LSB |
| Evaluation Kit | Yes |
| Frequency | 20MHz |
| Height | 2.35mm |
| Input Capacitance | 10pF |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 46LSB |
| Interface | Serial |
| Lead Free | Contains Lead |
| Length | 10.5mm |
| Max Input Voltage | 640mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 85W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Consumption | 93.5mW |
| Power Dissipation | 105mW |
| Power Supply | 5V |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 20MS/s |
| Series | iCoupler® |
| Signal to Noise Ratio (SNR) | 83dB |
| Supply Current | 10mA |
| Supply Type | Dual, Single |
| Width | 7.6mm |
| RoHS | Compliant |
