Precision operational amplifier featuring a 13MHz gain bandwidth product and 75V/µs slew rate. This single-channel BiFET op amp offers 100pA input bias current and 500µV input offset voltage. It operates with dual supply voltages from ±4.5V to ±18V, supporting a maximum supply voltage of 36V. With 88dB common mode rejection ratio and 95dB power supply rejection ratio, it achieves 112.04dB voltage gain. Packaged in TO-99-8 for through-hole mounting, it has a maximum power dissipation of 500mW and operates across a -55°C to 125°C temperature range.
PackageTO-99-8
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Analog Devices AD744TH/883B technical specifications.
General
Package/Case
TO-99-8
Common Mode Rejection Ratio
88dB
Contact Plating
Tin, Lead
Dual Supply Voltage
15V
Gain Bandwidth Product
13MHz
Input Bias Current
100pA
Input Capacitance
5.5pF
Input Offset Voltage (Vos)
500uV
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Max Supply Voltage
36V
Min Supply Voltage
9V
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Current
6.25mA
Output Current per Channel
6.25mA
Package Quantity
100
Packaging
Bulk
Power Dissipation
500mW
Power Supply Rejection Ratio (PSRR)
95dB
Quiescent Current
3.5mA
RoHS Compliant
No
Slew Rate
75V/µs
Technology
FET
Unity Gain Bandwidth Product
13MHz
Voltage Gain
112.04dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD744TH/883B Datasheet
Download the complete datasheet for Analog Devices AD744TH/883B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

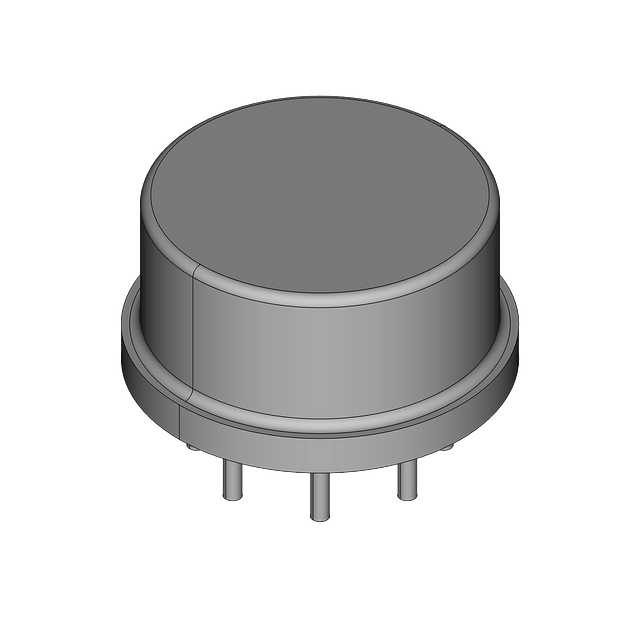

Product Images
