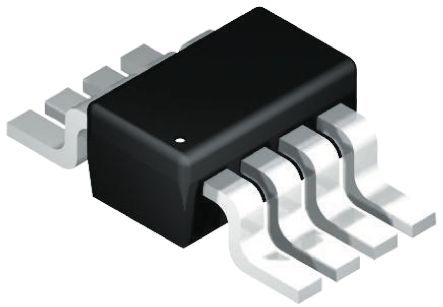

12-Bit Analog-to-Digital Converter (ADC) featuring a 555 kSPS sampling rate and differential input. This unipolar ADC offers 1LSB Integral Nonlinearity (INL) and 0.95LSB Differential Nonlinearity (DNL). It operates with a supply voltage range of 4.75V to 5.25V and a maximum power dissipation of 7.25mW. The component utilizes an SPI interface and is housed in an 8-lead SOT-23-8 package, measuring 2.9mm in length, 1.6mm in width, and 1.3mm in height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7452BRTZ-R2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD7452BRTZ-R2 technical specifications.
| Package/Case | SOT-23-8 |
| Differential Nonlinearity | 0.95LSB |
| Height | 1.3mm |
| Input Capacitance | 30pF |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | SPI |
| Lead Free | Contains Lead |
| Length | 2.9mm |
| Max Input Voltage | 100mV |
| Min Input Voltage | 3.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 7.25mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Dissipation | 7.25mW |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 555KS/s |
| Width | 1.6mm |
| RoHS | Compliant |
