12-bit, 1 MSPS Analog-to-Digital Converter (ADC) featuring a single-ended input and SPI serial interface. Offers 1.5 LSB Integral Nonlinearity (INL) and 3 LSB Full Scale Error. Operates from a 2.7V to 5.25V supply, with a maximum input voltage of 2.525V. Packaged in MSOP for surface mounting, with a temperature range of -40°C to 85°C.
PackageMSOP
MountingSurface Mount
PolarityUnipolar
Power10.5mW
Quick Jump:
Technical Specifications
Analog Devices AD7475ARMZ-REEL7 technical specifications.
General
Package/Case
MSOP
Contact Plating
Tin, Matte
Differential Nonlinearity
-0.9LSB
Full Scale Error
3LSB
Input Capacitance
20pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1.5LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Max Input Voltage
2.525V
Min Input Voltage
2.475V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
10.5mW
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Package Quantity
1
Packaging
Tape and Reel
Polarity
Unipolar
Power Dissipation
10.5mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
1MS/s
Signal to Noise Ratio (SNR)
68dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7475ARMZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD7475ARMZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

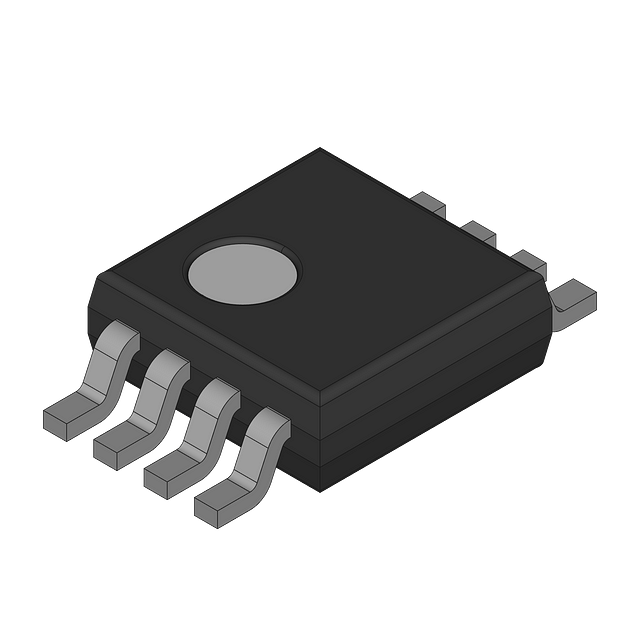

Product Images
