1 MSPS, 8-bit Analog-to-Digital Converter (ADC) featuring single-ended input and SPI interface. Achieves 0.3 LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL) with a full-scale error of 0.3 LSB. Operates from a single 2.35V to 5.25V supply, consuming a maximum of 17.5mW. Designed for unipolar operation with a maximum input voltage of 5.25V and an input capacitance of 30pF. Packaged in tape and reel, this RoHS compliant component offers gold contact plating and operates across a -40°C to 85°C temperature range.
PolarityUnipolar
Power17.5mW
Quick Jump:
Technical Specifications
Analog Devices AD7478AAKSZ-REEL7 technical specifications.
General
Contact Plating
Gold
Differential Nonlinearity
0.3LSB
Full Scale Error
0.3LSB
Input Capacitance
30pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
0.3LSB
Interface
SPI
Lead Free
Contains Lead
Max Input Voltage
5.25V
Min Input Voltage
2.35V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
17.5mW
Max Supply Voltage
5.25V
Min Supply Voltage
2.35V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
8
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Unipolar
Power Dissipation
17.5mW
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
1.2MS/s
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7478AAKSZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD7478AAKSZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

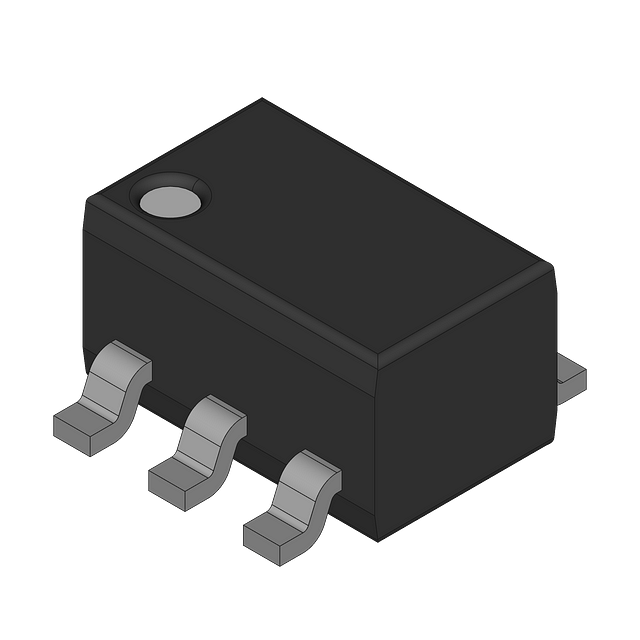

Product Images
