8-Bit, 1 MSPS Analog-to-Digital Converter (ADC) featuring a single-ended input and SPI interface. Achieves 0.3 LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL) with a full-scale error of 0.3 LSB. Operates from a single 2.35V to 5.25V supply, consuming 3.5mA typical supply current and dissipating 17.5mW maximum. Available in MSOP package with tin, matte contact plating.
PackageMSOP
Current3.5mA
PolarityUnipolar
Power17.5mW
Quick Jump:
Technical Specifications
Analog Devices AD7478AARMZ technical specifications.
General
Package/Case
MSOP
Contact Plating
Tin, Matte
Differential Nonlinearity
0.3LSB
Full Scale Error
0.3LSB
Height
0.85mm
Input Capacitance
30pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
0.3LSB
Interface
SPI
Lead Free
Contains Lead
Length
3mm
Max Input Voltage
5.25V
Min Input Voltage
2.35V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
17.5mW
Max Supply Voltage
5.25V
Min Supply Voltage
2.35V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
8
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Unipolar
Power Dissipation
17.5mW
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
1.2MS/s
Supply Current
3.5mA
Supply Type
Single
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7478AARMZ Datasheet
Download the complete datasheet for Analog Devices AD7478AARMZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

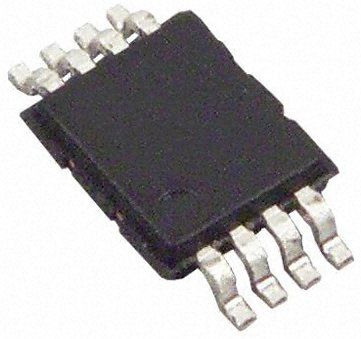

Product Images
