12-bit, 1MSPS Analog-to-Digital Converter (ADC) featuring 16 single-ended analog inputs and an SPI interface. Achieves 1LSB Integral Nonlinearity (INL) and 2LSB Full Scale Error, with a Signal-to-Noise Ratio (SNR) of 69.5dB. Operates from a 2.7V to 5.25V supply with a typical 2.5mA supply current and 12.5mW power dissipation. Housed in a 28-lead TSSOP package with tin, matte contact plating.
PackageTSSOP
Current2.5mA
PolarityUnipolar
Power12.5mW
Quick Jump:
Technical Specifications
Analog Devices AD7490BRUZ technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Matte
Differential Nonlinearity
-0.95LSB
Full Scale Error
2LSB
Height
1.05mm
Input Capacitance
20pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Contains Lead
Length
9.7mm
Max Input Voltage
2.525V
Min Input Voltage
2.475V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
12.5mW
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Number of A/D Converters
1
Number of Analog Inputs
16
Number of Bits
12
Number of Channels
16
Number of Converters
1
Number of Elements
1
Number of Inputs
16
Operating Supply Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Unipolar
Power Dissipation
12.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
1MS/s
Signal to Noise Ratio (SNR)
69.5dB
Supply Current
2.5mA
Supply Type
Analog, Digital
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7490BRUZ Datasheet
Download the complete datasheet for Analog Devices AD7490BRUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

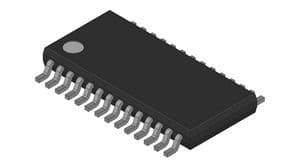

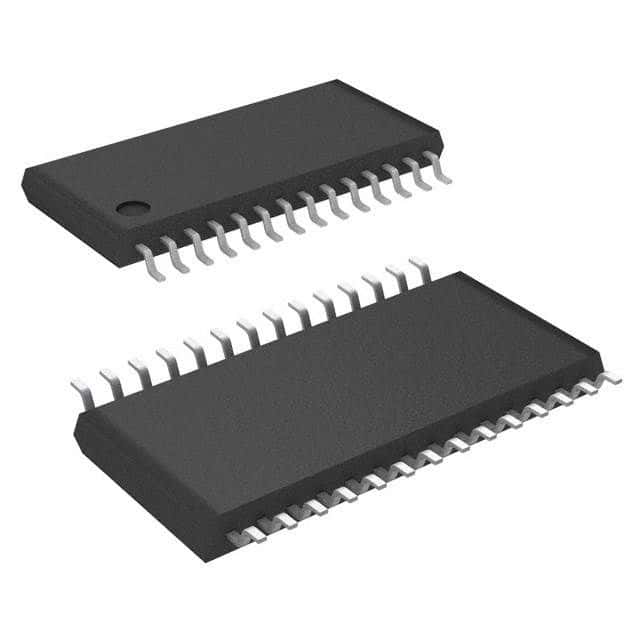

Product Images
