Analog Devices
AD7533JP-REEL
IC DUAL, PARALLEL, WORD INPUT LOADING, 0.8 us SETTLING TIME, 10-BIT DAC, PQCC20, PLASTIC, MO-047AA, LCC-20, Digital to Analog Converter
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD7533JP-REEL technical specifications.
General
| Package/Case | PLCC |
| Conversion Rate | 1.7MS/s |
| Integral Nonlinearity (INL) | 0.2LSB |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 5V |
| Mount | Surface Mount |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Operating Supply Voltage | 15V |
| Packaging | Tape and Reel |
| Resolution | 10b |
| RoHS Compliant | No |
| Settling Time | 0.8us |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices AD7533JP-REEL Datasheet
Download the complete datasheet for Analog Devices AD7533JP-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

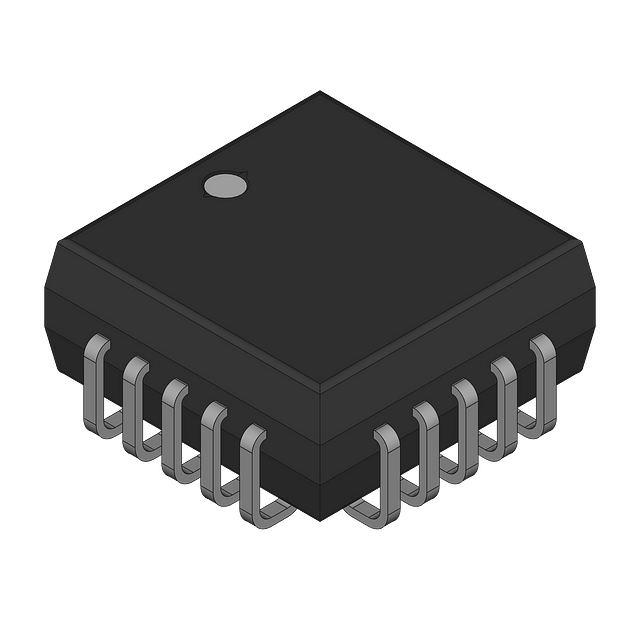

Product Images
