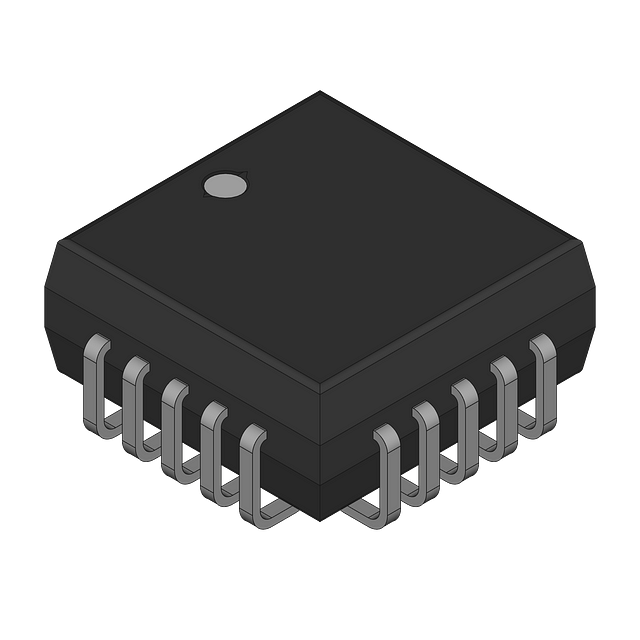

14-bit Digital-to-Analog Converter (DAC) with parallel interface. Features a 667 kS/s conversion rate and 1.5 µs settling time. Offers bipolar and unipolar output polarity with a full-scale error of 8 LSB and integral nonlinearity of 2 LSB. Operates with dual supply voltages up to ±15.75V and is housed in a 20-pin PLCC surface-mount package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7534JPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PLCC |
| Contact Plating | Tin, Matte |
| Conversion Rate | 667KS/s |
| Differential Output | No |
| Dual Supply Voltage | 15.75V |
| Full Scale Error | 8LSB |
| Height | 4.57mm |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 9.04mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 15.75V |
| Min Supply Voltage | 11.4V |
| Mount | Surface Mount |
| Number of Bits | 14 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Output Polarity | Bipolar, Unipolar |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Resolution | 14b |
| RoHS Compliant | No |
| Sampling Rate | 667KS/s |
| Settling Time | 1.5us |
| Width | 9.04mm |
| RoHS | Not Compliant |
