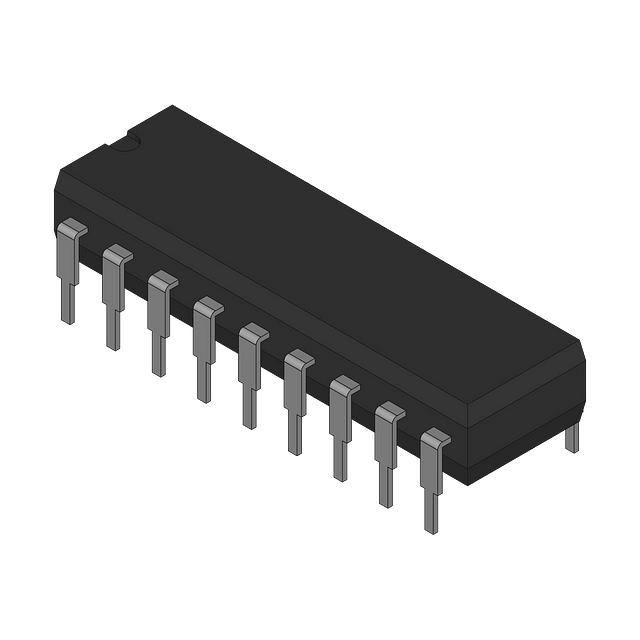

12-bit Digital-to-Analog Converter (DAC) with parallel word input loading. Features a 600ns settling time and a single channel output. Operates with a supply voltage range of 5V to 16V, with a typical operating voltage of 15V. Packaged in a 18-pin PDIP with tin/lead contact plating, suitable for through-hole mounting. Offers 0.5LSB integral nonlinearity and 5LSB full-scale error.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7541AKN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Contact Plating | Tin, Lead |
| Full Scale Error | 5LSB |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 5V |
| Mount | Through Hole |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of DAC Channels | 1 |
| Operating Supply Voltage | 15V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Power Dissipation | 450mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | No |
| Settling Time | 600ns |
| Supply Type | Single |
| RoHS | Not CompliantNo |
