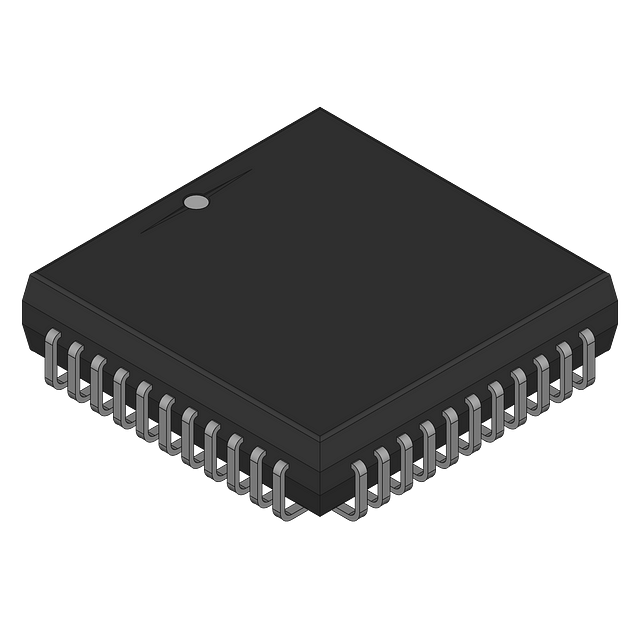

Octal 12-bit CMOS Digital-to-Analog Converter (DAC) featuring a 2MS/s conversion rate and SPI serial interface. This general-purpose DAC offers 8 independent DAC channels with a 12-bit resolution. Key specifications include a full-scale error of 5 LSB, integral nonlinearity of 0.5 LSB, and a settling time of 500ns. It operates from a 4.75V to 5.25V supply voltage, with a maximum power dissipation of 17.5mW. The component is housed in a PLCC package with tin, matte contact plating and supports differential output.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7568BPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PLCC |
| Contact Plating | Tin, Matte |
| Conversion Rate | 2MS/s |
| Converter Type | GENERAL PURPOSE |
| Differential Output | Yes |
| Full Scale Error | 5LSB |
| Height | 3.68mm |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Serial, SPI |
| Lead Free | Contains Lead |
| Length | 16.66mm |
| Max Input Voltage | 10V |
| Min Input Voltage | -10V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 20V |
| Min Output Voltage | 0uV |
| Max Power Dissipation | 17.5mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of Bits | 12 |
| Number of Channels | 8 |
| Number of Converters | 8 |
| Number of D/A Converters | 8 |
| Number of DAC Channels | 8 |
| Operating Supply Voltage | 5V |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Power Dissipation | 17.5mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 2MS/s |
| Settling Time | 500ns |
| Width | 16.66mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD7568BPZ to view detailed technical specifications.
