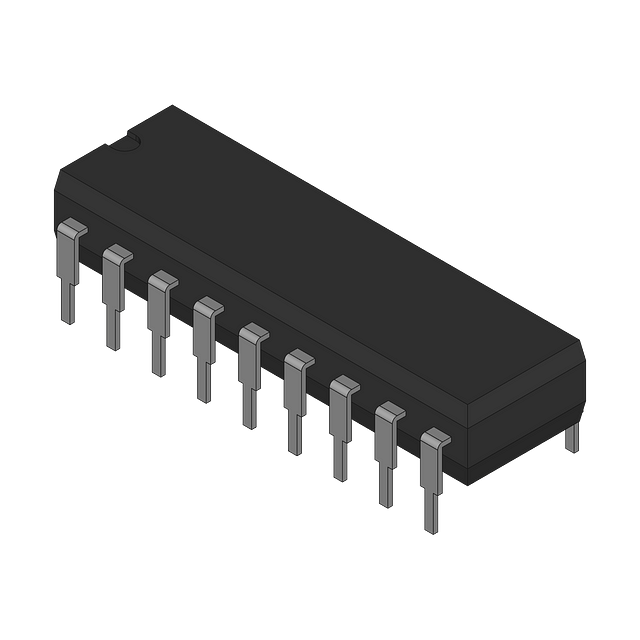

8-Bit CMOS Analog-to-Digital Converter (ADC) featuring a 5µs conversion time and a 50kS/s sampling rate. This unipolar ADC offers 1LSB integral nonlinearity and full-scale error, with a signal-to-noise ratio of 45dB. It operates from a single 5V supply (4.75V to 5.25V) and has a power dissipation of 35mW. The component is housed in a 28-pin DIP package with tin, matte contact plating, designed for through-hole mounting. It supports a parallel interface and operates across a temperature range of -55°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7575JNZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Contact Plating | Tin, Matte |
| Full Scale Error | 1LSB |
| Height | 3.56mm |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 23.12mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Dissipation | 35mW |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 50KS/s |
| Signal to Noise Ratio (SNR) | 45dB |
| Supply Type | Single |
| Width | 6.61mm |
| RoHS | Compliant |
