10-bit sampling Analog-to-Digital Converter (ADC) featuring a differential input type and a parallel interface. Achieves 0.5 LSB Integral Nonlinearity (INL) and 0.9 LSB Differential Nonlinearity. Operates with bipolar or unipolar polarity, offering a 60dB Signal to Noise Ratio (SNR) and a sampling rate of 50 kS/s. Housed in a PDIP package, this single-channel converter supports a maximum input voltage of 2.5V and operates across a temperature range of -55°C to 125°C.
PackagePDIP
PolarityBipolar, Unipolar
Power50mW
Quick Jump:
Technical Specifications
Analog Devices AD7579KNZ technical specifications.
General
| Package/Case | PDIP |
| Differential Nonlinearity | 0.9LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Input Voltage | 2.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 50mW |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 2 |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Polarity | Bipolar, Unipolar |
| Power Dissipation | 50mW |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 50KS/s |
| Signal to Noise Ratio (SNR) | 60dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD7579KNZ Datasheet
Download the complete datasheet for Analog Devices AD7579KNZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

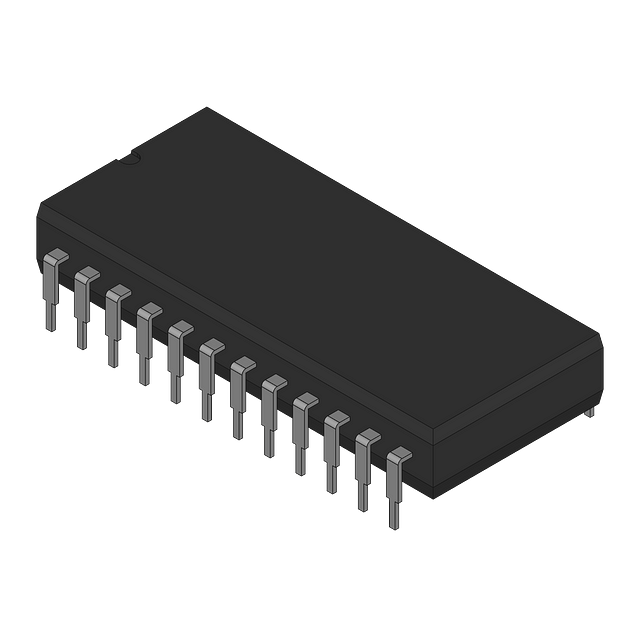

Product Images
