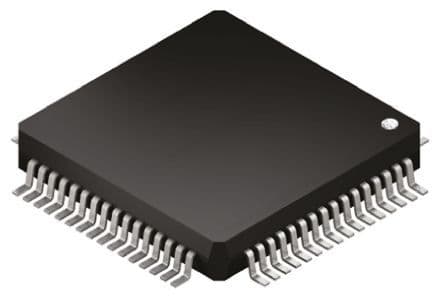

18-bit, 8-channel differential simultaneous sampling Analog-to-Digital Converter (ADC) with a 200 kS/s sampling rate and 101dB Signal-to-Noise Ratio (SNR). Features bipolar input polarity, SPI interface, and a maximum input voltage of 2.525V. Operates from a 5V supply voltage with a maximum power dissipation of 100mW. Packaged in an LQFP with tin, matte contact plating, suitable for applications requiring precise data acquisition.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7609BSTZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD7609BSTZ technical specifications.
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Differential Nonlinearity | -0.99LSB |
| Full Scale Error | 140LSB |
| Height | 1.45mm |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 7.5LSB |
| Interface | SPI |
| Lead Free | Contains Lead |
| Length | 10.2mm |
| Max Input Voltage | 2.525V |
| Min Input Voltage | 2.475V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 8 |
| Number of Bits | 18 |
| Number of Channels | 8 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 20mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 160 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Consumption | 100mW |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | No |
| Resolution | 18b |
| RoHS Compliant | Yes |
| Sampling Rate | 200KS/s |
| Signal to Noise Ratio (SNR) | 101dB |
| Supply Current | 2.5uA |
| Supply Type | Analog, Digital, Single |
| Width | 10.2mm |
| RoHS | Compliant |
