16-bit, 250 kSPS PulSAR® Analog-to-Digital Converter (ADC) featuring a unipolar/bipolar programmable input. Achieves 1.5 LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL) with a 93dB Signal-to-Noise Ratio (SNR). Operates from a dual 5V supply, accepting differential inputs up to 5.25V. Packaged in an LFCSP EP with matte tin contact plating, this RoHS compliant component offers a 7mm x 7mm x 0.83mm footprint.
PackageLFCSP EP
PolarityBipolar, Unipolar
Power90mW
Quick Jump:
Technical Specifications
Analog Devices AD7610BCPZ technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Differential Nonlinearity
1.5LSB
Dual Supply Voltage
5V
Full Scale Error
70LSB
Height
0.83mm
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1.5LSB
Interface
SPI
Lead Free
Contains Lead
Length
7mm
Max Input Voltage
5.25V
Min Input Voltage
4.75V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
110mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Package Quantity
1
Packaging
Tray
Polarity
Bipolar, Unipolar
Power Consumption
90mW
Power Dissipation
110mW
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
250KS/s
Series
iCMOS®, PulSAR®
Signal to Noise Ratio (SNR)
93dB
Supply Type
Dual
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7610BCPZ Datasheet
Download the complete datasheet for Analog Devices AD7610BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

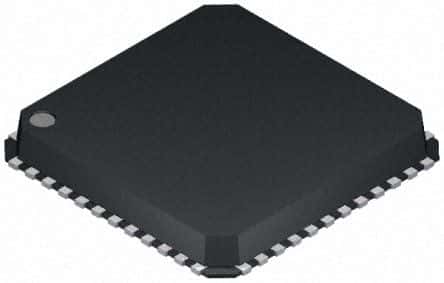

Product Images
