16-bit bipolar PulSAR® Analog-to-Digital Converter (ADC) with a sampling rate of 570 kSPS. Features differential input type, 4 analog inputs, and a 16-bit resolution. Offers an integral nonlinearity of 2.5 LSB and a signal-to-noise ratio of 90 dB. Operates with a 5V supply voltage and utilizes an SPI interface. Packaged in a tray with a height of 0.95mm, length of 7mm, and width of 7mm.
PolarityBipolar, Unipolar
Power93mW
Quick Jump:
Technical Specifications
Analog Devices AD7665ACPZ technical specifications.
General
Height
0.95mm
Input Capacitance
60pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
2.5LSB
Interface
SPI
Lead Free
Contains Lead
Length
7mm
Max Input Voltage
3.15V
Min Input Voltage
2.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
107mW
Number of A/D Converters
1
Number of Analog Inputs
4
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Operating Supply Voltage
5V
Output Type
TTL
Package Quantity
1
Packaging
Tray
Polarity
Bipolar, Unipolar
Power Consumption
93mW
Power Dissipation
107mW
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
570KS/s
Series
PulSAR®
Signal to Noise Ratio (SNR)
90dB
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7665ACPZ Datasheet
Download the complete datasheet for Analog Devices AD7665ACPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

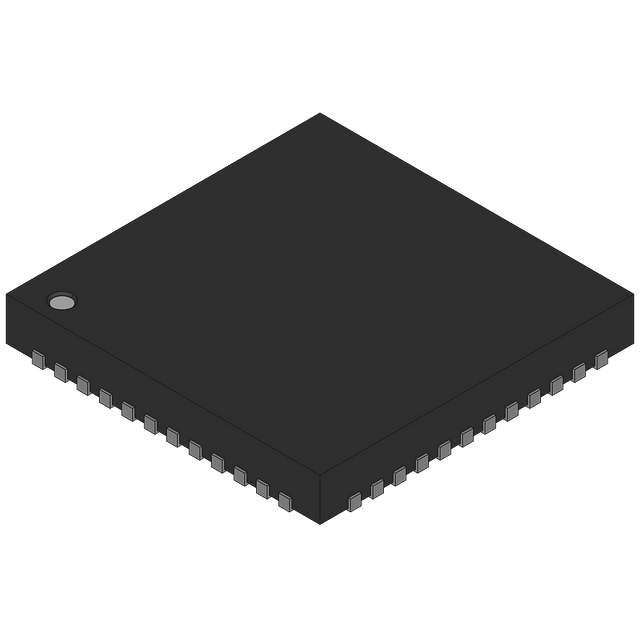

Product Images
