Analog Devices
AD7678ACPZ
18-Bit 1-Channel Analog-to-Digital Converter, SPI Interface, 100KS/s Sampling Rate
The AD7678ACPZ is an 18-bit analog-to-digital converter with a single input channel and a sampling rate of 100KS/s. It operates over a temperature range of -40°C to 85°C and is compatible with SPI interfaces. The device is packaged in a HVQCCN package and is compliant with RoHS standards. It has a power dissipation of 26mW and a signal-to-noise ratio of 101dB.
PolarityBipolar
Power26mW
Quick Jump:
Technical Specifications
Analog Devices AD7678ACPZ technical specifications.
General
| Input Type | DIFFERENTIAL |
| Interface | SPI |
| Lead Free | Contains Lead |
| Max Input Voltage | 5.25V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 18 |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Package Quantity | 1 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Dissipation | 26mW |
| Resolution | 18b |
| RoHS Compliant | Yes |
| Sampling Rate | 100KS/s |
| Series | PulSAR® |
| Signal to Noise Ratio (SNR) | 101dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD7678ACPZ Datasheet
Download the complete datasheet for Analog Devices AD7678ACPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

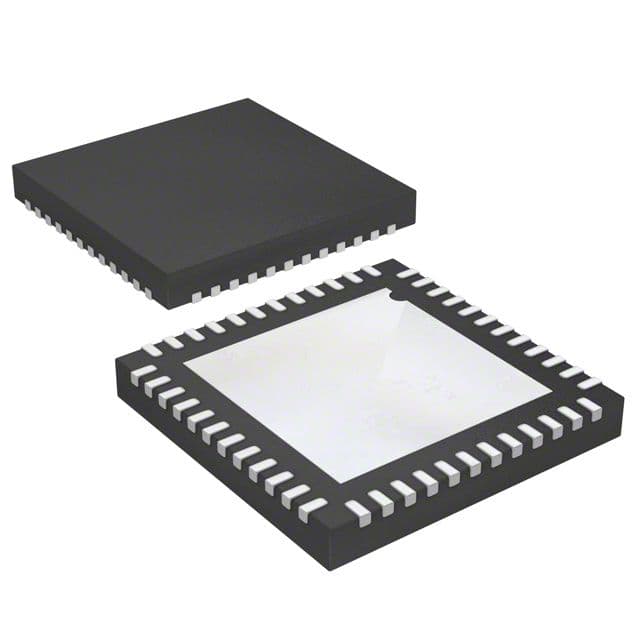

Product Images
