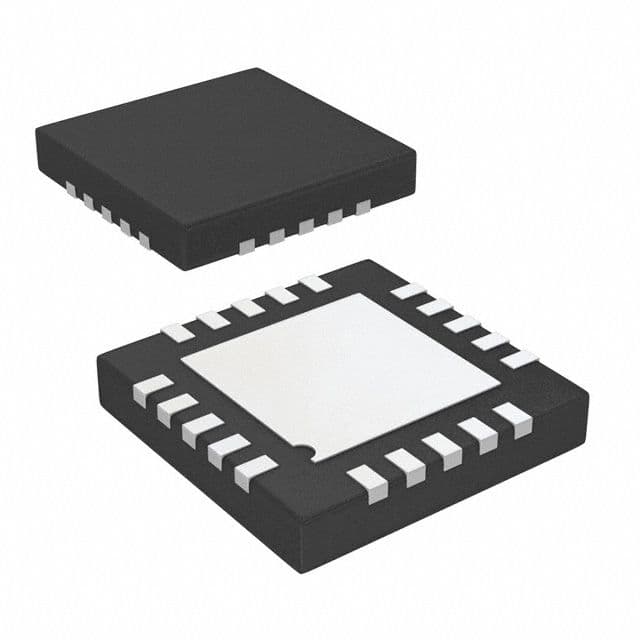

16-bit, 8-channel PulSAR® Analog-to-Digital Converter (ADC) with a 250 kSPS sampling rate. Features include a 93.5dB Signal-to-Noise Ratio (SNR), 6LSB Integral Nonlinearity (INL), and 30LSB Full Scale Error. Operates with a single supply voltage from 2.3V to 5.5V, accepting input voltages from 500mV to 5V. Housed in a QFN package with tin, matte contact plating, this IC offers bipolar and unipolar polarity options and a maximum power dissipation of 19.2mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7689ACPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD7689ACPZ technical specifications.
| Package/Case | QFN |
| Contact Plating | Tin, Matte |
| Full Scale Error | 30LSB |
| Height | 0.95mm |
| Integral Nonlinearity (INL) | 6LSB |
| Interface | SPI |
| Lead Free | Contains Lead |
| Length | 4.1mm |
| Max Input Voltage | 5V |
| Min Input Voltage | 500mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 19.2mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Number of Channels | 8 |
| Number of Converters | 1 |
| Number of Inputs | 8 |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Polarity | Bipolar, Unipolar |
| Power Dissipation | 19.2mW |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 250KS/s |
| Series | PulSAR® |
| Signal to Noise Ratio (SNR) | 93.5dB |
| Supply Type | Single |
| Width | 4.1mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD7689ACPZ to view detailed technical specifications.
