20-bit Sigma-Delta Analog-to-Digital Converter (ADC) with a single-ended input and SPI interface. Features a 20-bit resolution, 16 kS/s sampling rate, and ±0.5 LSB differential nonlinearity. Operates with a dual 5V supply voltage (4.5V to 5.5V range) and accepts input voltages up to 2.5V. Packaged in a SOIC with tin/lead contact plating, this component offers bipolar and unipolar polarity options and a power dissipation of 37mW.
PackageSOIC
PolarityBipolar, Unipolar
Power25mW
Quick Jump:
Technical Specifications
Analog Devices AD7703AR technical specifications.
General
Package/Case
SOIC
Contact Plating
Tin, Lead
Differential Nonlinearity
0.5LSB
Dual Supply Voltage
5V
Full Scale Error
32LSB
Input Capacitance
20pF
Input Type
SINGLE-ENDED
Interface
SPI
Lead Free
Contains Lead
Max Dual Supply Voltage
5.5V
Min Dual Supply Voltage
4.5V
Max Input Voltage
2.5V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
37mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
20
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Package Quantity
37
Packaging
Rail/Tube
Polarity
Bipolar, Unipolar
Power Consumption
25mW
Power Dissipation
37mW
Reach SVHC Compliant
No
Resolution
20b
RoHS Compliant
No
Sampling Rate
16KS/s
Supply Type
Dual
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD7703AR Datasheet
Download the complete datasheet for Analog Devices AD7703AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

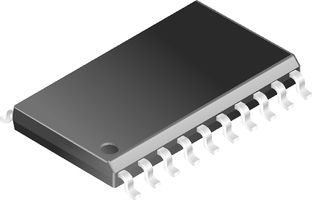

Product Images
