16-bit, 1-channel delta-sigma Analog-to-Digital Converter (ADC) featuring differential input. Offers SPI and parallel interface options with a maximum sampling rate of 900 kS/s. Operates from a 4.75V to 5.25V supply, with integral nonlinearity of 2 LSB. Packaged in a 44-pin QFP with dimensions of 10mm x 10mm x 2mm. Supports bipolar and unipolar polarity, and is RoHS compliant.
PackageQFP
PolarityBipolar, Unipolar
Quick Jump:
Technical Specifications
Analog Devices AD7725BSZ technical specifications.
General
Package/Case
QFP
Height
2mm
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
2LSB
Interface
SPI, Parallel
Lead Free
Lead Free
Length
10mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Bits
16
Number of Channels
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tray
Polarity
Bipolar, Unipolar
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
900000S/s
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7725BSZ Datasheet
Download the complete datasheet for Analog Devices AD7725BSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

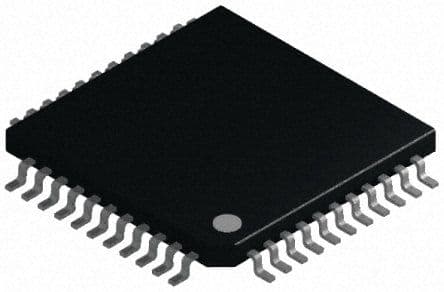

Product Images
