The AD7729ARU-REEL is a dual 15-bit analog-to-digital converter with a sampling rate of 270kS/s. It operates over a temperature range of -40°C to 105°C and is packaged in a TSSOP-28 package. The device is not RoHS compliant and contains lead in its contact plating. It requires an operating supply voltage of 3V and has a maximum power dissipation of 59mW.
PackageTSSOP
PolarityUnipolar
Power59mW
Quick Jump:
Technical Specifications
Analog Devices AD7729ARU-REEL technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin, Lead |
| Input Capacitance | 10pF |
| Interface | Serial |
| Lead Free | Contains Lead |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 59mW |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 15 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Operating Supply Voltage | 3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Dissipation | 59mW |
| Resolution | 15b |
| RoHS Compliant | No |
| Sampling Rate | 270800S/s |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices AD7729ARU-REEL Datasheet
Download the complete datasheet for Analog Devices AD7729ARU-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

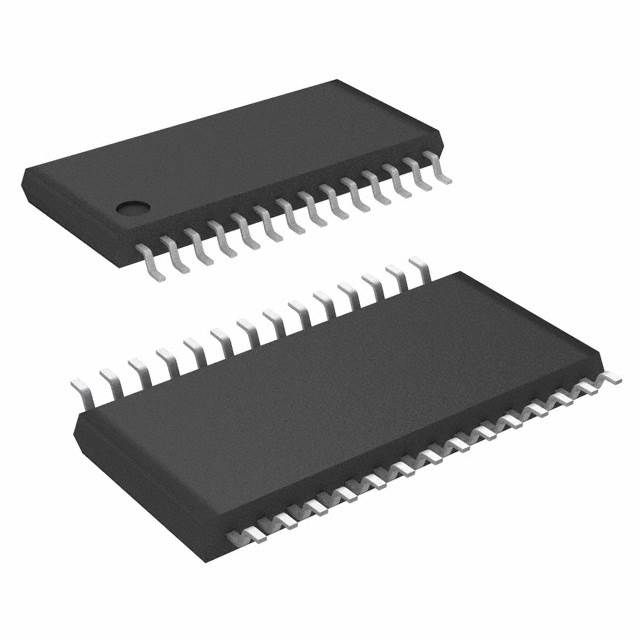

Product Images
