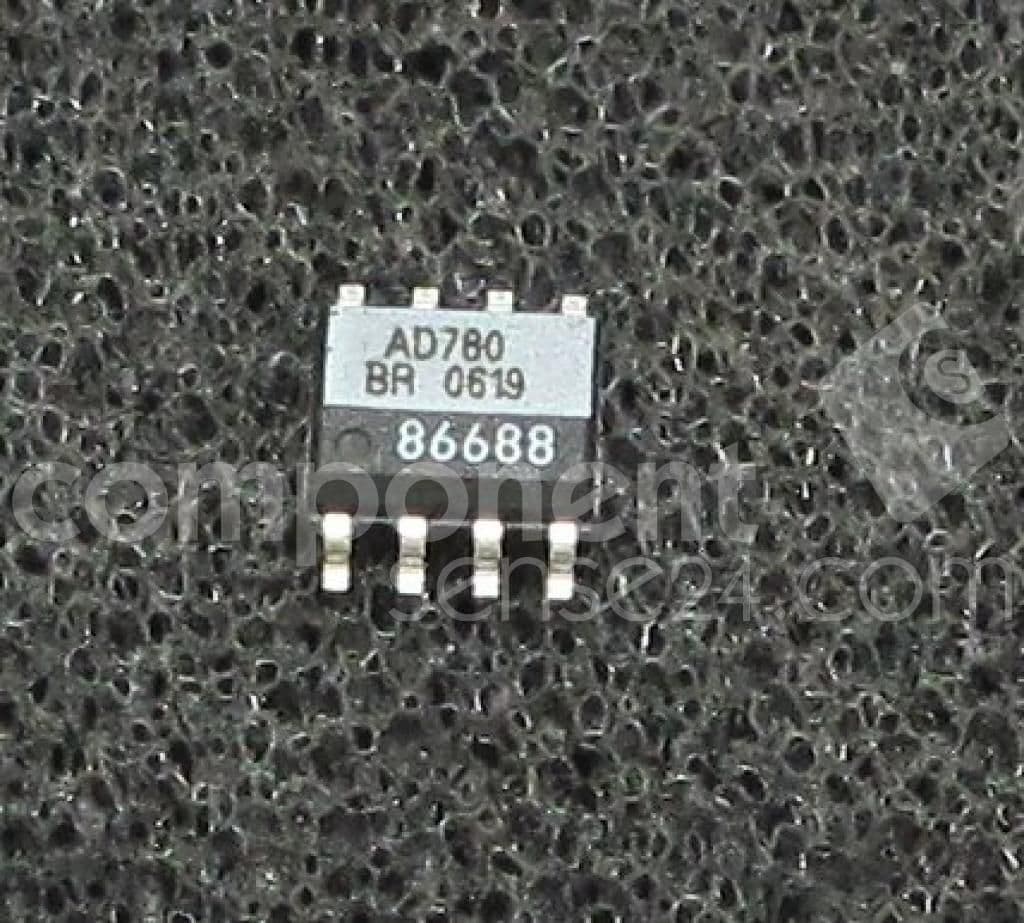

The AD780BR voltage reference from Analog Devices is a series type with a nominal output voltage of 2.5V. It can supply up to 10mA of output current and operates within a temperature range of -40°C to 85°C. The device is available in a SOP8 package and is packaged in rail/Tube packaging with 98 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD780BR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | R |
| Cathode Current | 1mA |
| Height | 1.5mm |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Input Voltage | 36V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10mA |
| Min Output Voltage | 3V |
| Nominal Supply Current | 1mA |
| Operating Supply Current | 1mA |
| Output Current | 10mA |
| Output Voltage | 2.5V |
| Package Quantity | 98 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reference Type | Series |
| RoHS Compliant | No |
| Tolerance | 0.03% |
| Width | 4mm |
| RoHS | Not CompliantNo |
Download the complete datasheet for Analog Devices AD780BR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Analog Devices AD780BR
Reference design for high dynamic range geophone and hydrophone acquisition using the AD1555/AD1556 chipset, featuring 120dB dynamic range and low power consumption.
24-bit sigma-delta acquisition reference design using the AD1555/AD1556 chipset. Offers 120dB dynamic range and <90mW power consumption for geophones and hydrophones.
