Analog Devices
AD7812YR-REEL
IC 8-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO20, SOIC-20, Analog to Digital Converter
PackageSOIC
PolarityUnipolar
Power10.5mW
Quick Jump:
Technical Specifications
Analog Devices AD7812YR-REEL technical specifications.
General
| Package/Case | SOIC |
| Integral Nonlinearity (INL) | 1LSB |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of A/D Converters | 1 |
| Number of Bits | 10 |
| Number of Channels | 8 |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Dissipation | 10.5mW |
| Resolution | 10b |
| RoHS Compliant | No |
| Sampling Rate | 350000S/s |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices AD7812YR-REEL Datasheet
Download the complete datasheet for Analog Devices AD7812YR-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

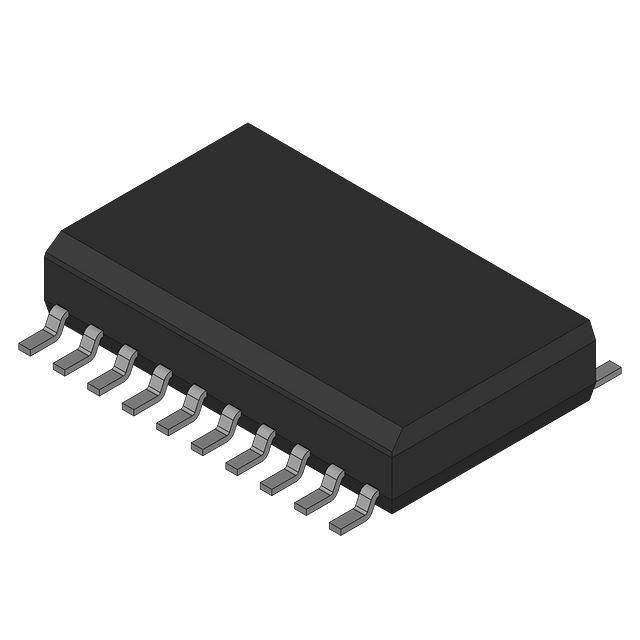

Product Images
