PackageMSOP
Current400uA
Quick Jump:
Technical Specifications
Analog Devices AD7814ARM-REEL7 technical specifications.
General
Package/Case
MSOP
Contact Plating
Tin, Lead
Interface
SPI, Serial, 4-WIRE
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Channels
1
Operating Supply Current
400uA
Output Type
Digital
Package Quantity
1
Packaging
Tape and Reel
Resolution
10b
RoHS Compliant
No
Sampling Rate
2.5KS/s
Supply Current
400uA
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD7814ARM-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD7814ARM-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

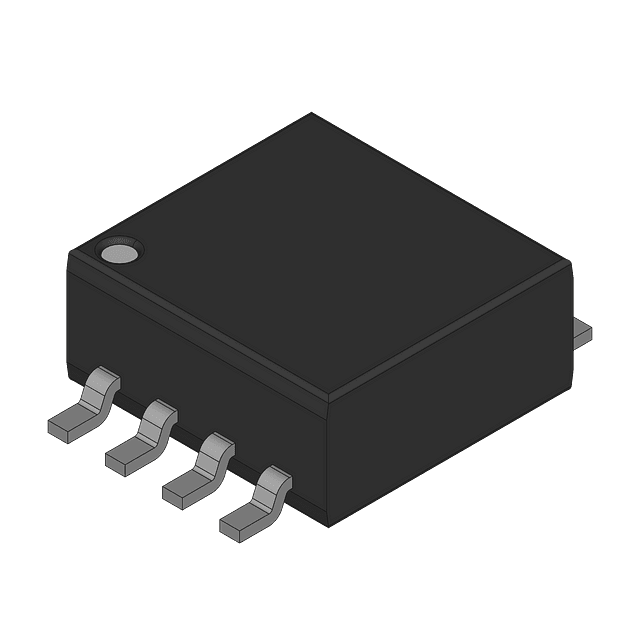

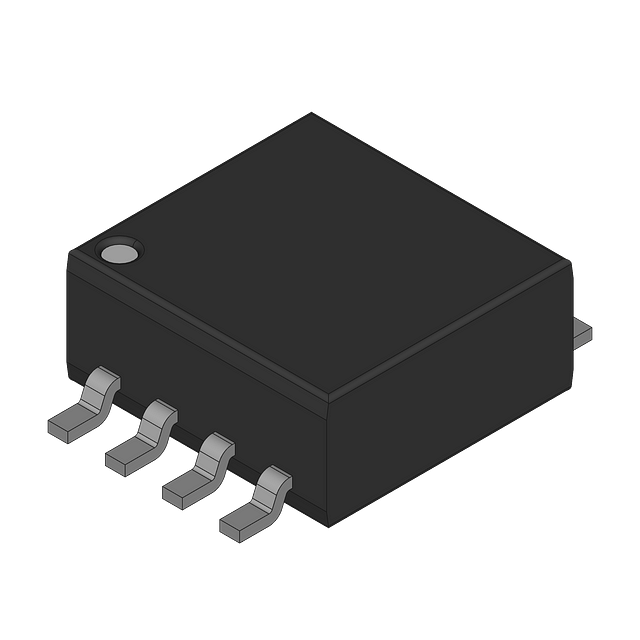

Product Images
