10-bit, 4-channel temperature sensor with a 9µs conversion time. Features single-ended inputs, SPI serial interface, and unipolar output. Operates from a 2.7V to 5.5V supply with a typical current of 2mA. Offers 1LSB integral and differential nonlinearity, with a full-scale error of 10LSB. Packaged in a 5mm x 4.4mm x 1.05mm TSSOP for surface mounting.
PackageTSSOP
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Analog Devices AD7817ARUZ technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Matte
Differential Nonlinearity
1LSB
Full Scale Error
10LSB
Height
1.05mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Length
5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
450mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
2mA
Number of A/D Converters
1
Number of Analog Inputs
4
Number of Bits
10
Number of Channels
5
Number of Converters
1
Operating Supply Current
2mA
Operating Supply Voltage
5V
Output Type
Digital
Package Quantity
96
Packaging
Rail/Tube
Polarity
Unipolar
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Supply Type
Single
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD7817ARUZ Datasheet
Download the complete datasheet for Analog Devices AD7817ARUZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

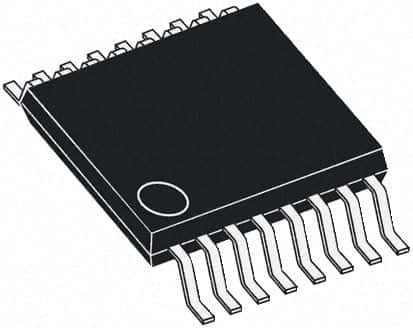

Product Images
