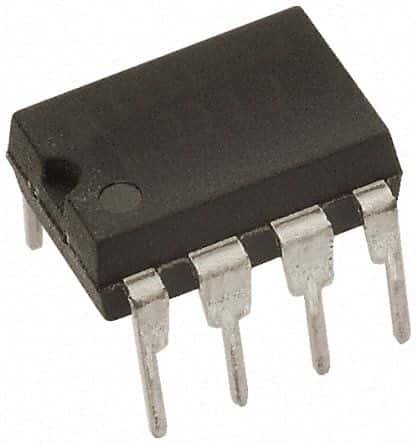

Single-channel sample and hold amplifier featuring a 4MHz -3dB bandwidth and 250ns settling time. This integrated circuit operates with a dual supply voltage range of 10.8V to 13.2V, typically 12V, drawing 4mA of supply current. It offers a 0.7µs acquisition time and 5mA output current per channel. The component is housed in an 8-pin PDIP package with tin, matte contact plating, designed for through-hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD781JNZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| -3db Bandwidth | 4MHz |
| Bandwidth | 4MHz |
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Dual Supply Voltage | 12V |
| Height | 3.3mm |
| Input Bias Current | 50nA |
| Input Offset Voltage (Vos) | 50mV |
| Lead Free | Contains Lead |
| Length | 9.91mm |
| Max Dual Supply Voltage | 13.2V |
| Min Dual Supply Voltage | 10.8V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 13.2V |
| Min Supply Voltage | 10.8V |
| Mount | Through Hole |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 4mA |
| Operating Supply Voltage | 12V |
| Output Current per Channel | 5mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Settling Time | 250ns |
| Width | 6.35mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices AD781JNZ to view detailed technical specifications.
