High-speed, 8-bit sampling Analog-to-Digital Converter (ADC) featuring a single-ended input and parallel interface. This CMOS component offers a 1MS/s sampling rate with a 45dB Signal-to-Noise Ratio (SNR). It operates with a dual supply voltage range of 3V to 5V and is packaged in PLCC for tape and reel distribution. The device supports bipolar and unipolar polarity with a maximum power dissipation of 100.5mW.
PackagePLCC
PolarityBipolar, Unipolar
Power50mW
Quick Jump:
Technical Specifications
Analog Devices AD7821KPZ-REEL technical specifications.
General
| Package/Case | PLCC |
| Input Capacitance | 55pF |
| Input Type | SINGLE-ENDED |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Input Voltage | 5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 50mW |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Converters | 3 |
| Number of Inputs | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Bipolar, Unipolar |
| Power Consumption | 50mW |
| Power Dissipation | 100.5mW |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 1MS/s |
| Signal to Noise Ratio (SNR) | 45dB |
| Supply Type | Dual |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD7821KPZ-REEL Datasheet
Download the complete datasheet for Analog Devices AD7821KPZ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

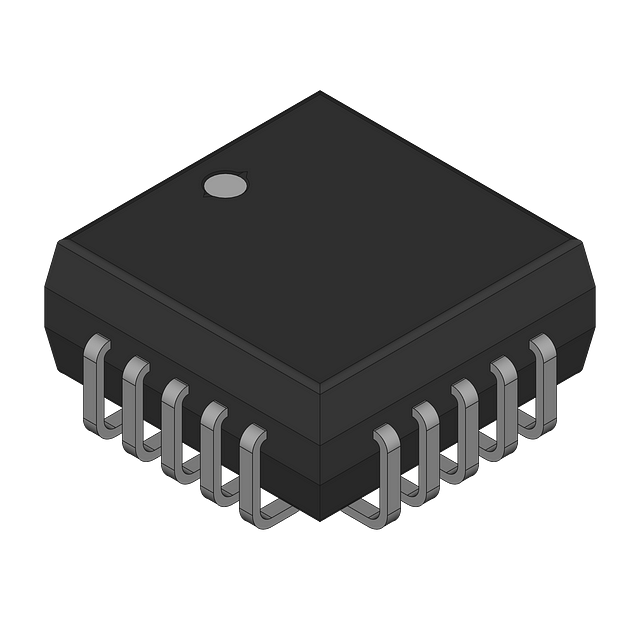

Product Images
