Analog Devices
AD7824LNZ
IC 4-CH 8-BIT FLASH METHOD ADC, PARALLEL ACCESS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, MO-095AG, DIP-24, Analog to Digital Converter
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD7824LNZ technical specifications.
General
| Package/Case | PDIP |
| Height | 3.81mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 30.01mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Nominal Supply Current | 16mA |
| Number of A/D Converters | 1 |
| Number of Bits | 8 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 50000S/s |
| Width | 7.49mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD7824LNZ Datasheet
Download the complete datasheet for Analog Devices AD7824LNZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

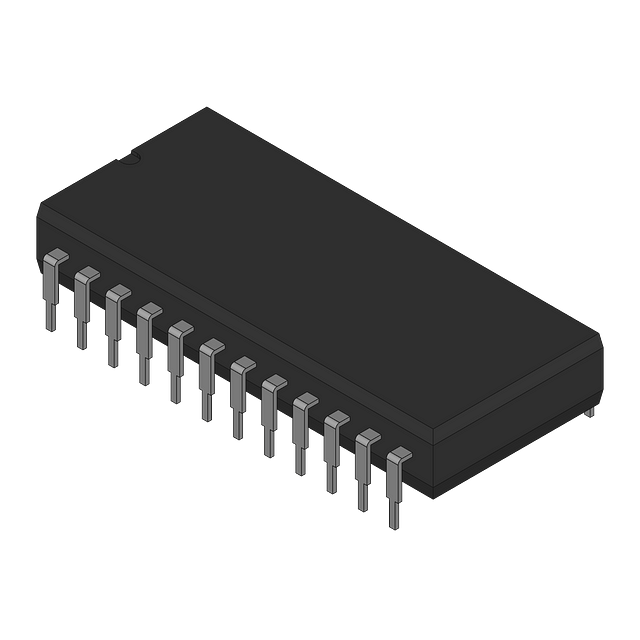

Product Images
