8-bit, 8-channel analog-to-digital converter (ADC) featuring a parallel interface. This unipolar device operates from a single 5V supply, with a voltage range of 4.75V to 5.25V. It offers a sampling rate of 50 kS/s and a maximum power dissipation of 80mW. Packaged in a 28-pin PDIP with matte tin plating, it supports through-hole mounting and has an operating temperature range of 0°C to 70°C.
PackagePDIP
MountingThrough Hole
PolarityUnipolar
Power50mW
Quick Jump:
Technical Specifications
Analog Devices AD7828LNZ technical specifications.
General
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Height | 4.07mm |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 36.83mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 80mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 8 |
| Number of Bits | 8 |
| Number of Inputs | 8 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Dissipation | 50mW |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 50KS/s |
| Supply Type | Single |
| Width | 13.97mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD7828LNZ Datasheet
Download the complete datasheet for Analog Devices AD7828LNZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

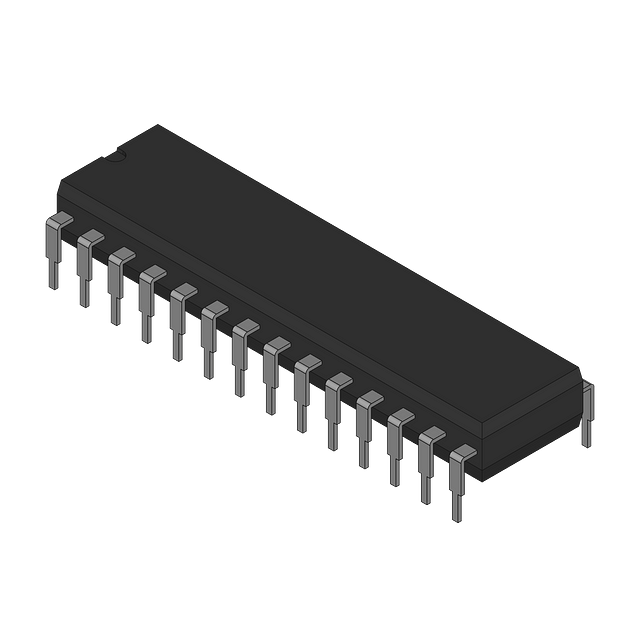

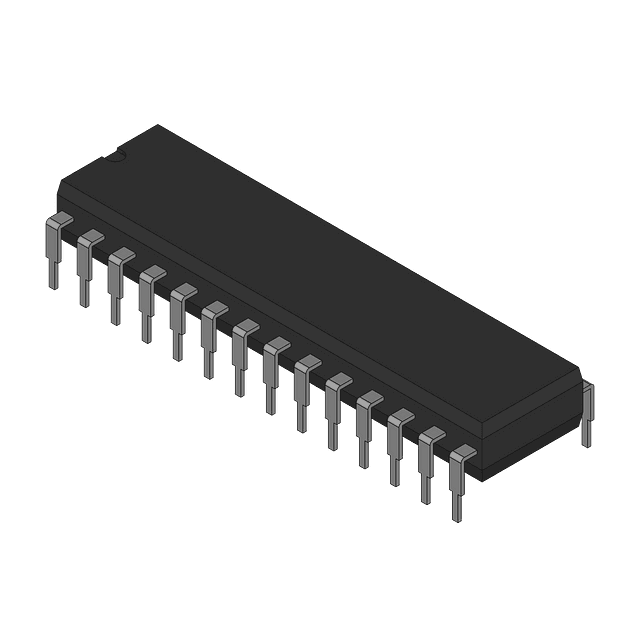

Product Images
